Lexmark MX811de - ADF Lift Tray Removal

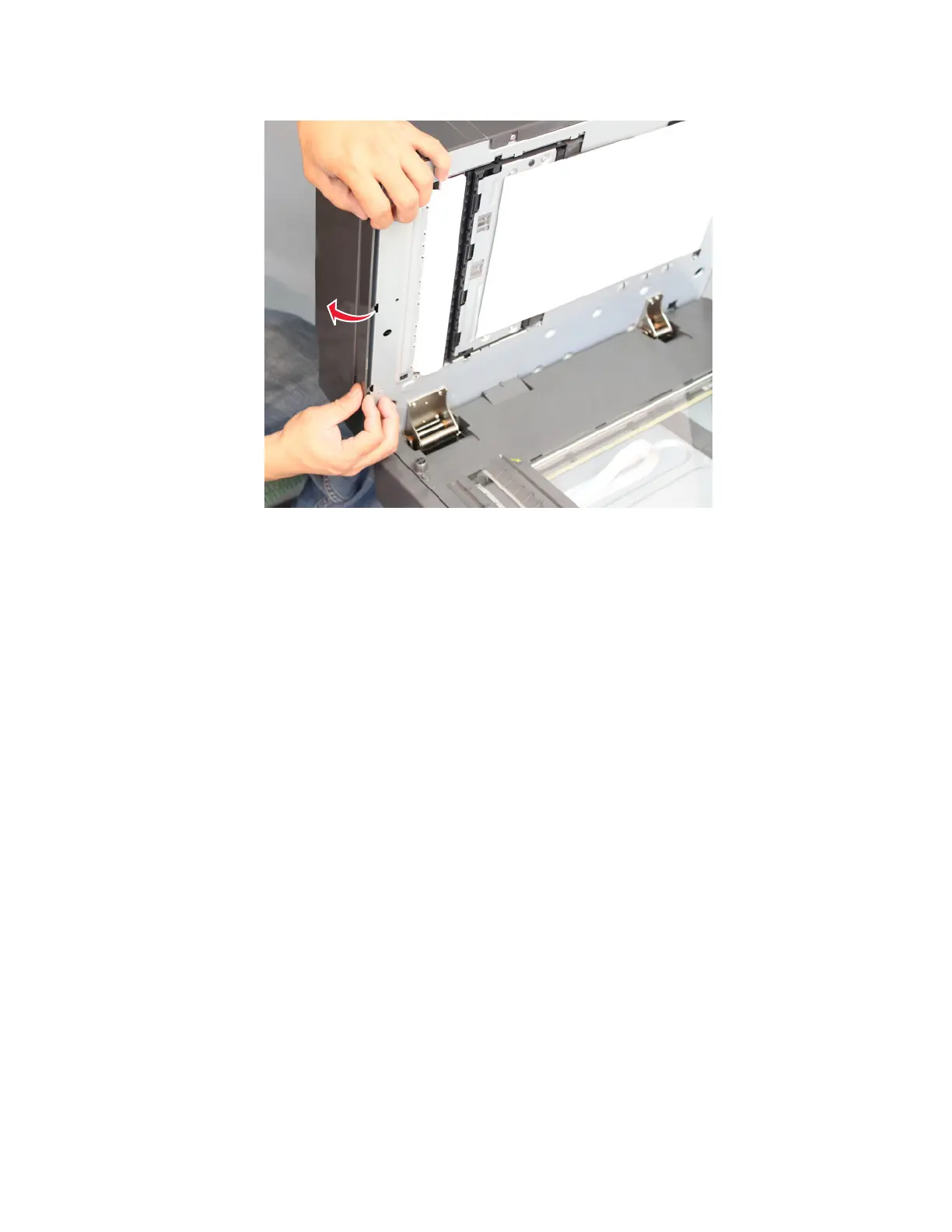

5 Remove the ADF left lower cover.
ADF lift tray removal
1 Remove the ADF front cover. See “ADF front cover removal” on page 459
2 Remove the ADF rear cover. See “ADF rear cover removal” on page 470
3 Remove the ADF left lower cover. See “ADF left lower cover removal” on page 464
4 Open the ADF door.
5 Remove the ADF input tray. See “ADF input tray removal” on page 461
7463
Repair information
466
