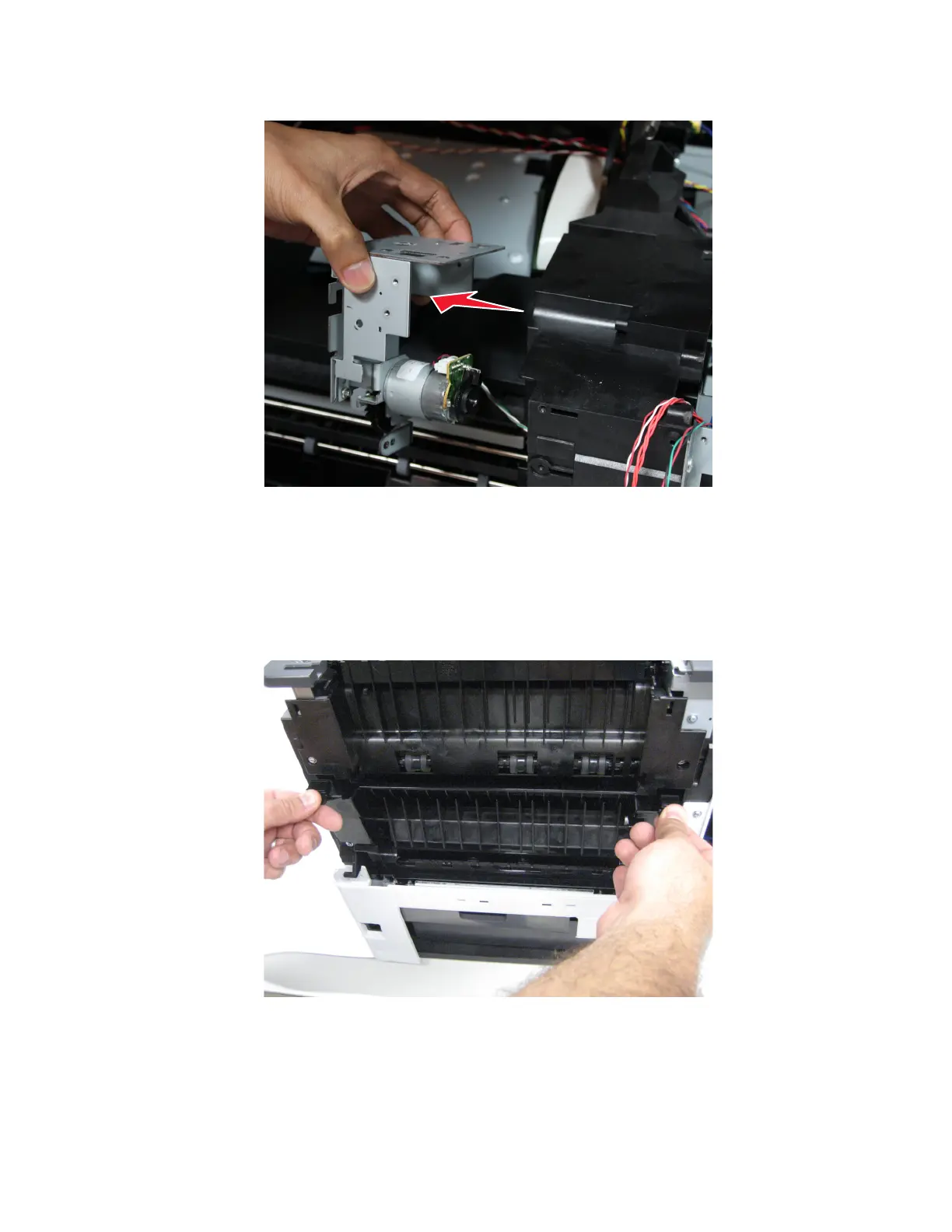

10 Remove the upper redrive motor with cable.
Upper redrive removal
1 Open the rear door.
2 For MX81x, remove the top cover. See “Top cover removal” on page 314.
3 Open the fuser access door.
7463
Repair information
363
