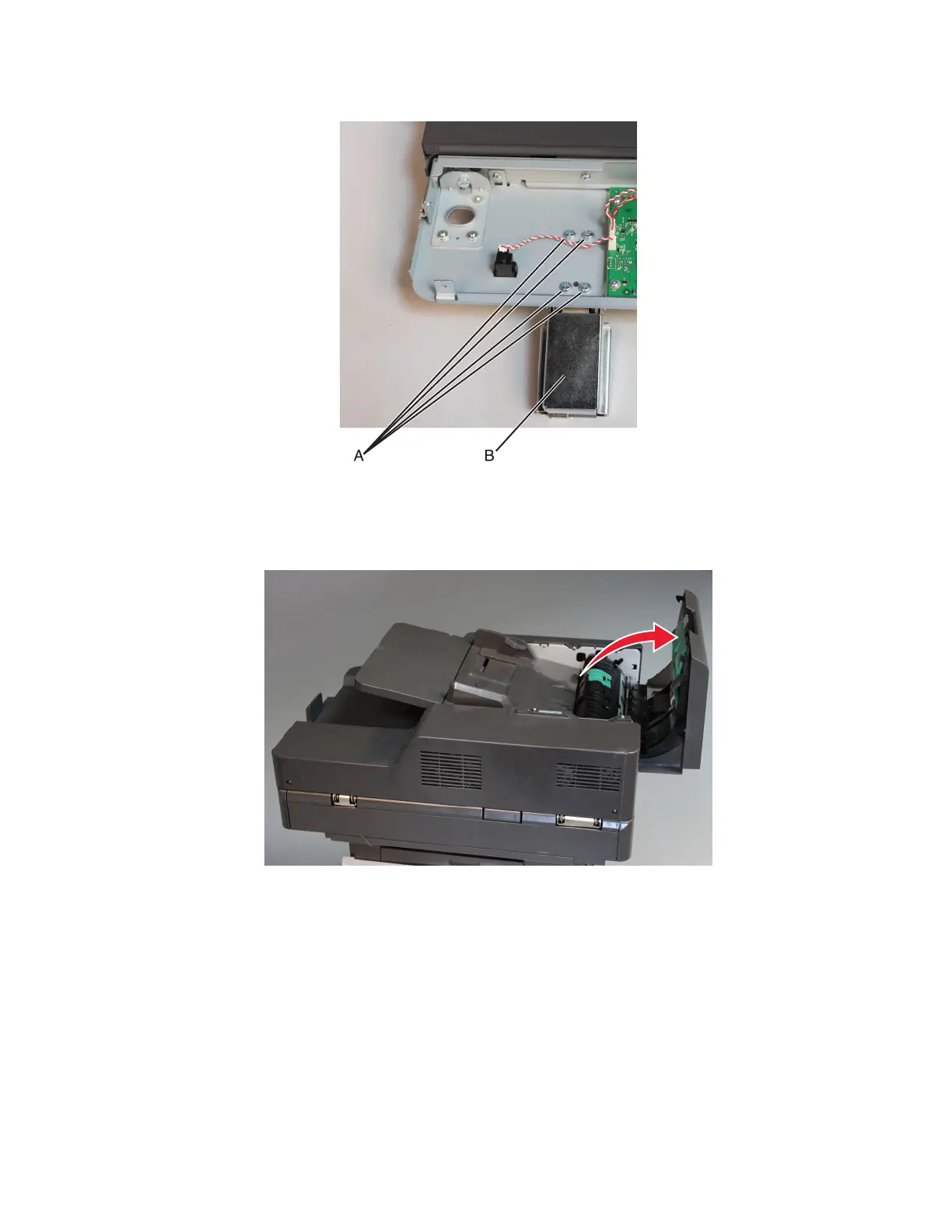

4 Remove the ADF right hinge (B).
ADF separation guide removal
1 Open the ADF top cover.
2 Remove the four screws (A) securing the ADF separation guide.
7463
Repair information
473
