Lexmark MX811de - Control Panel Cover Removal

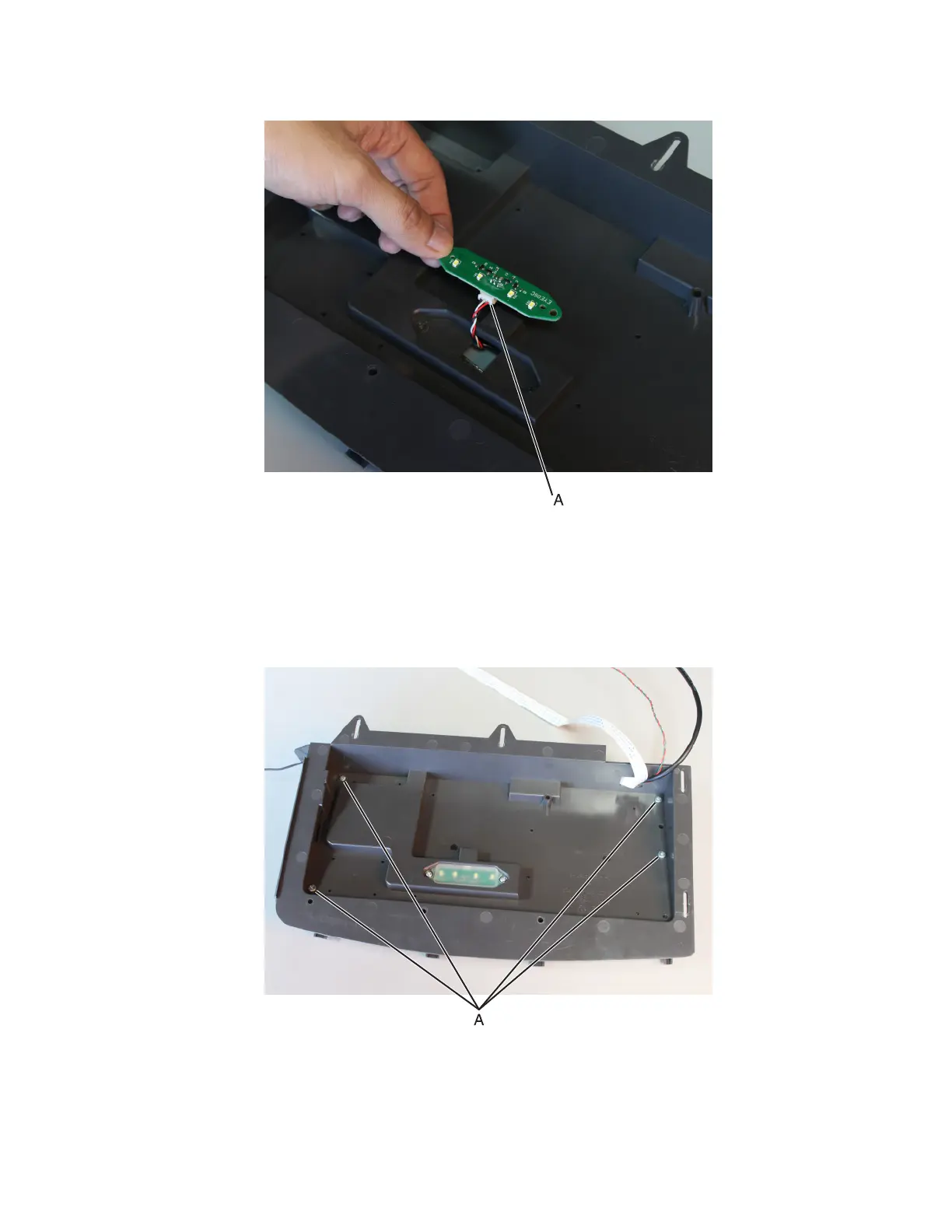

2 Disconnect the cable (B) and remove the board.
Control panel cover removal
1 Remove the control panel. See “Control panel removal (MX71x)” on page 414 or “Control panel removal (MX81x)”
on page 417.
2 Remove the four screws (A), and then remove the cover.
7463
Repair information
441
