Lexmark MX811de - Rear Lower Door Removal (Mx81 X)

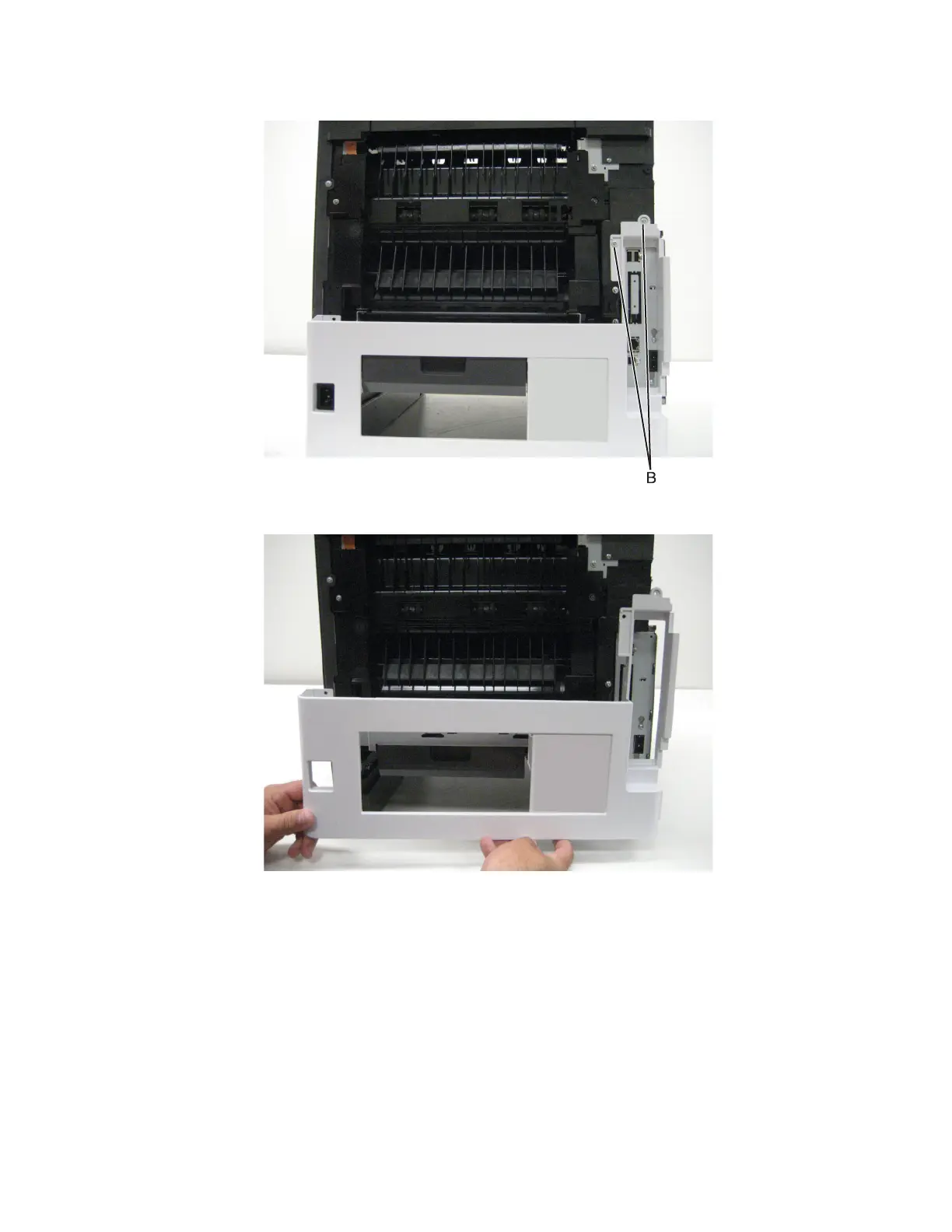

4 Remove the two screws (B) securing the rear lower cover.
5 Gently pull the rear lower cover up and out to remove it.
Rear lower door removal (MX81x)
1 Remove the controller board access cover. See “Controller board access cover removal” on page 387.
2 Remove the controller board access shield. See “Controller board access shield removal” on page 388.
3 Remove the rear door. See “Rear door removal” on page 307.
4 Remove the left cover. See “Left cover removal (MX81x)” on page 303.
5 Remove the right cover. See “Right cover removal (MX81x)” on page 312.
7463
Repair information
310
