Lexmark MX811de - Separation Roll Drive Gear (29 T) Removal

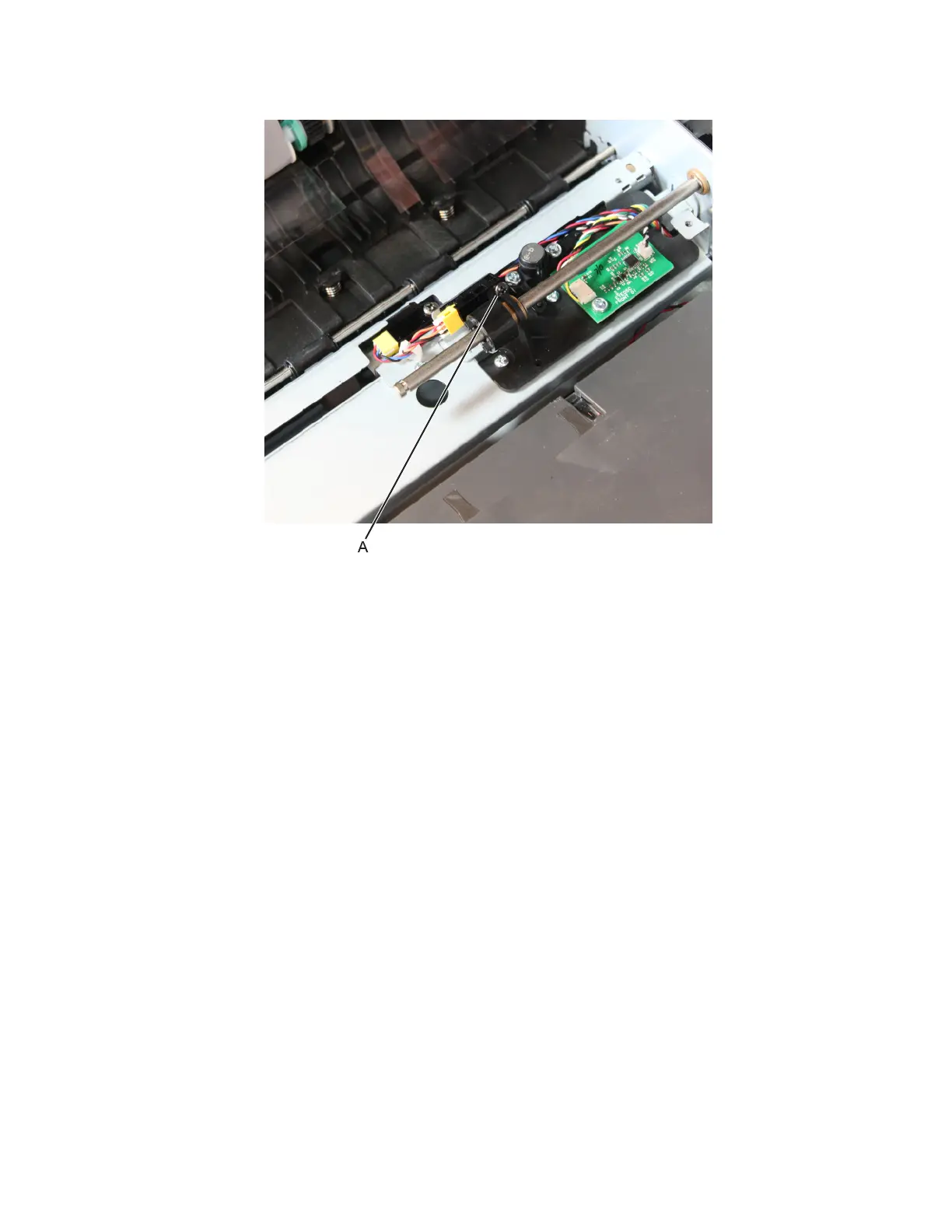

5 Remove the screw (A) from the sensor.
Separation roll drive gear (29t) removal
1 Remove the ADF rear cover. See “ADF rear cover removal” on page 470.
2 Remove the ADF rear side drive parts pack. See “ADF rear side drive parts pack removal” on page 472.
3 Remove the e-clip (A) on the separation roll drive gear.
7463
Repair information
496
