Magnetic clutch removal
1 Remove the ADF rear cover. See “ADF rear cover removal” on page 470.

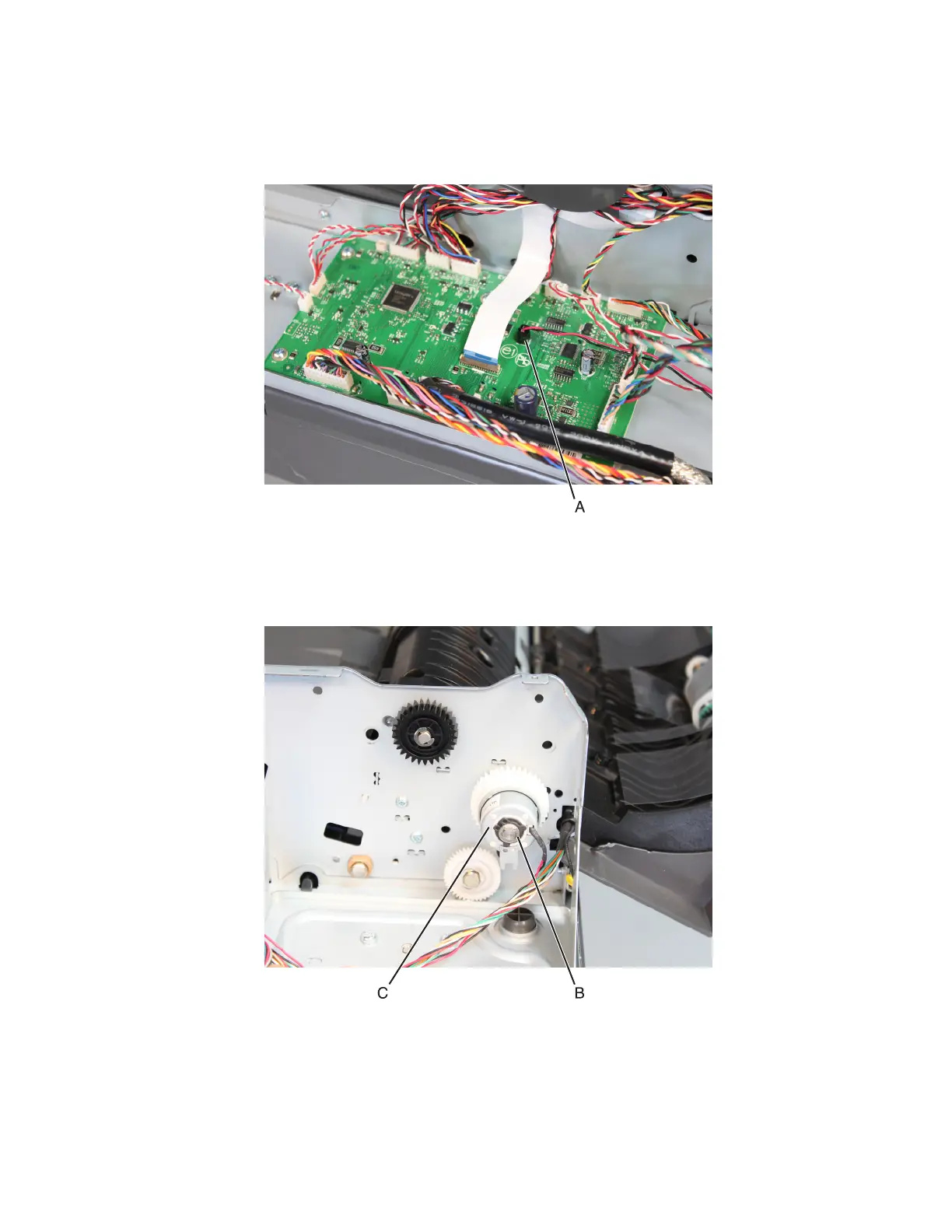

2 Disconnect the JDSKW1 cable (A) from the ADF controller card.
3 Remove the ADF rear side drive parts pack. See “ADF rear side drive parts pack removal” on page 472.
4 Remove the e-clip (B) on the magnetic clutch.
5 Remove the magnetic clutch (C).
