Lexmark MX811de - Left Control Panel Hinge Removal

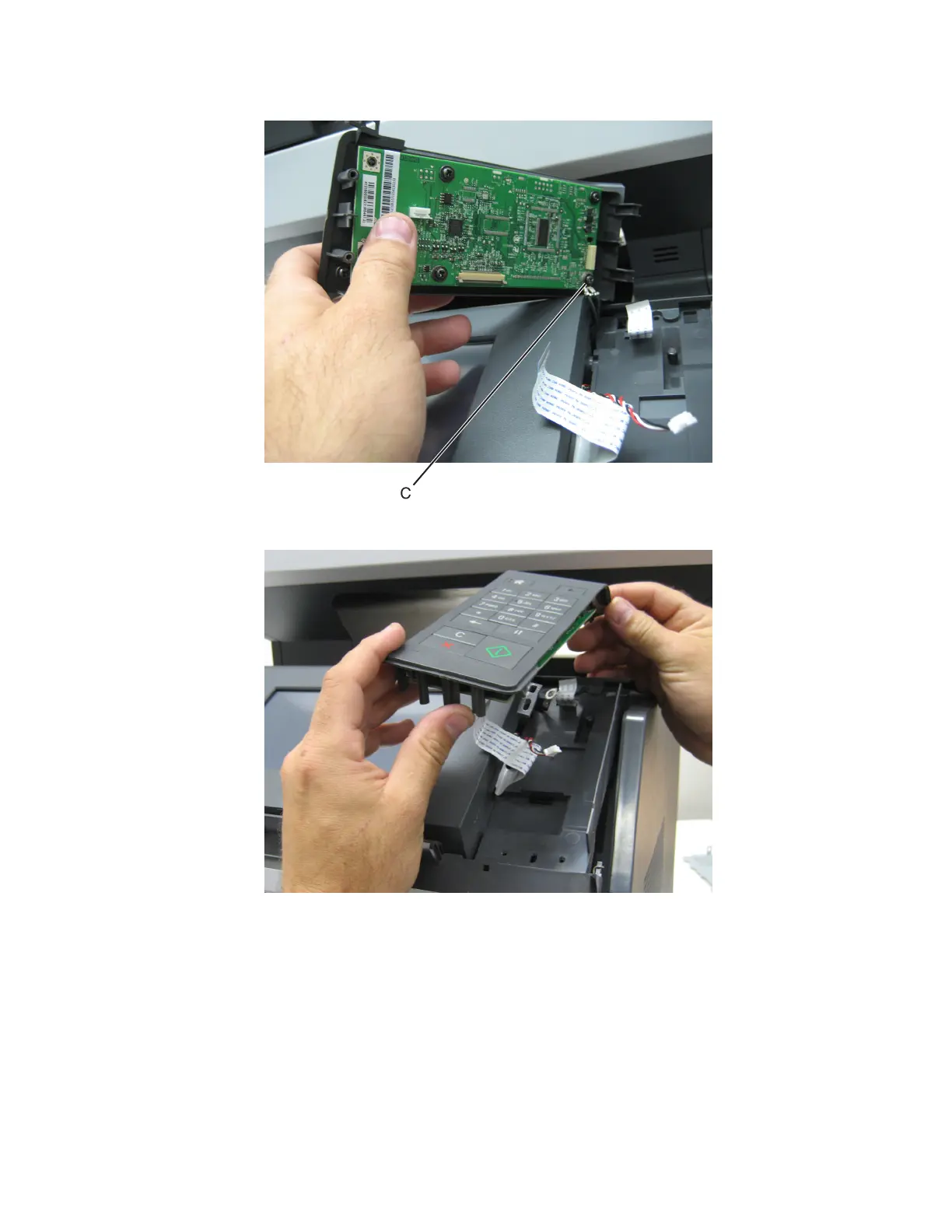

5 Remove the screw (C) securing the ground wires to the control panel right bezel.
6 Remove the control panel right bezel.
Left control panel hinge removal
1 Remove the left cover. See “Left cover removal (MX71x)” on page 301.
2 Remove the right cover. See “Right cover removal (MX71x)” on page 311.
3 Open the rear door.
4 Remove the top cover. See “Top cover removal” on page 314.
5 Remove the upper redrive. See “Upper redrive removal” on page 363.
