Lexmark MX811de - Base Printer - Bottom Removals

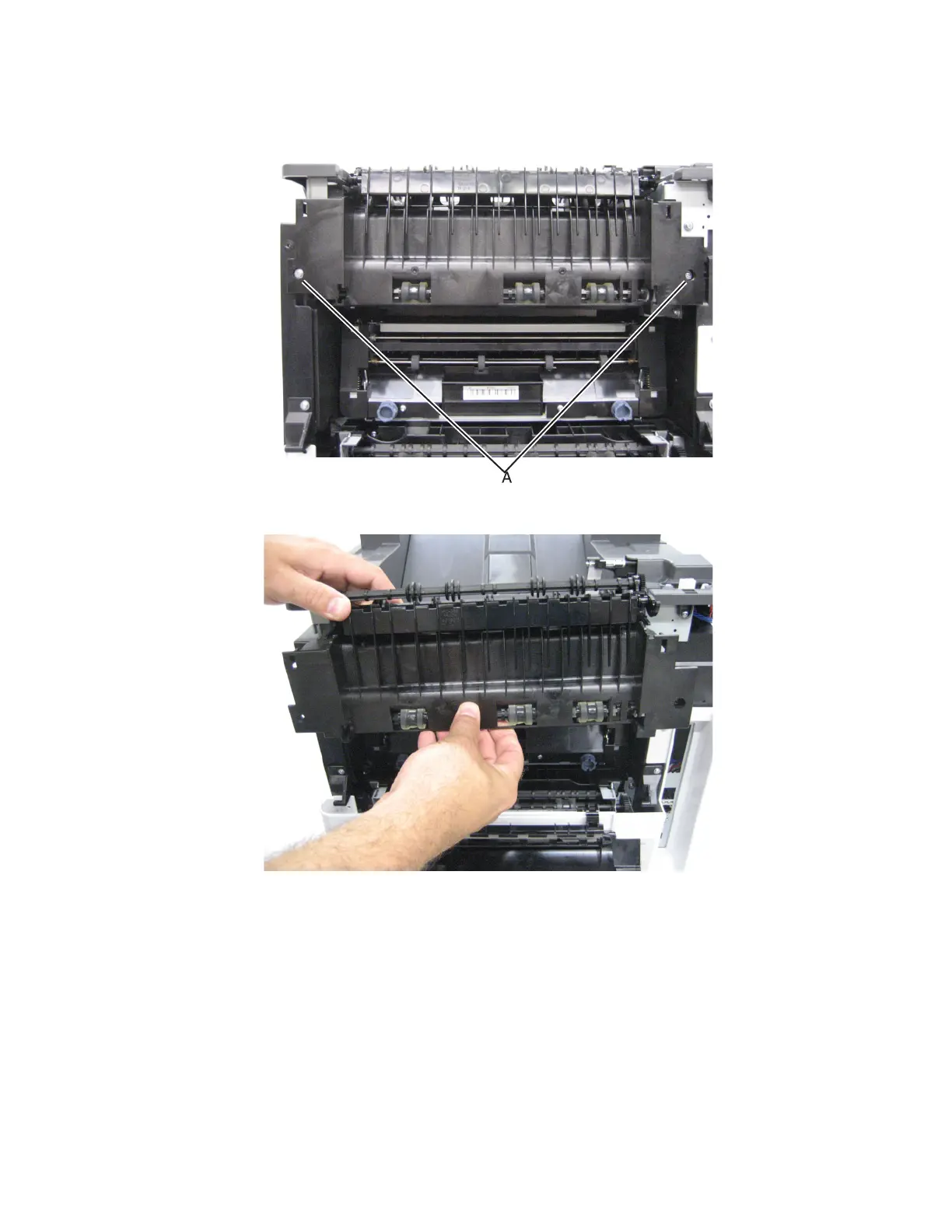

4 Remove the two screws (A).
5 Move the upper redrive down and away from the machine to remove it.
Base printer - bottom removals
• “Duplex removal (MX71x)” on page 365
• “Duplex removal (MX81x)” on page 366
• “Duplex front flap removal” on page 368
• “Duplex rear flap removal” on page 369
• “Left frame extension removal (MX71x)” on page 370
• “Left frame extension removal (MX81x)” on page 372
