5

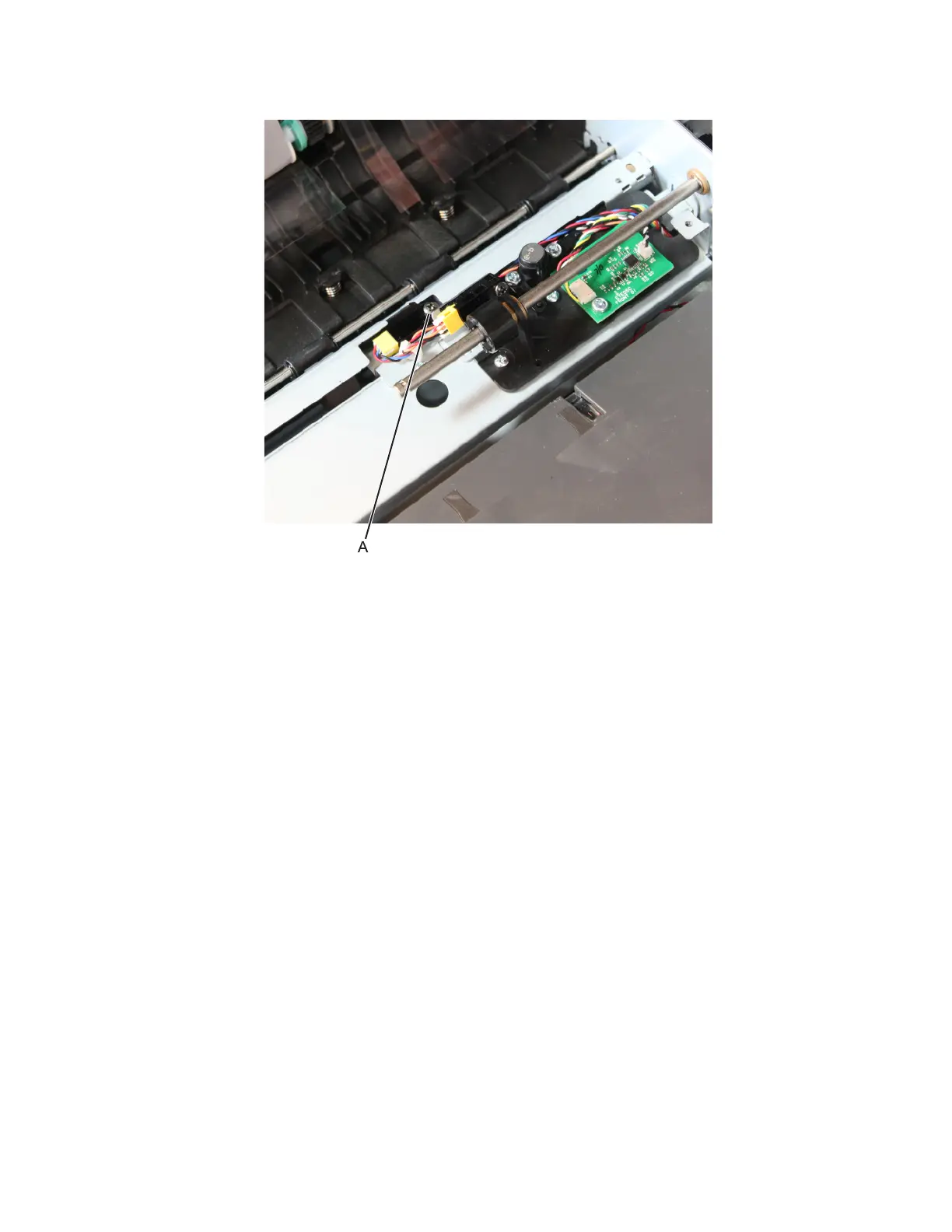

Remove the screw (A)
from the sensor.
Sensor (ADF skew detect) removal
1
Open th
e ADF
top cover
.
2
Remove the sep
aration
guide.
3
Remove the ADF
separato
r roll.
4
Disconnect the cab
le from the se
nsor.
7463
Rep
air
info
rma
tio
n
495
