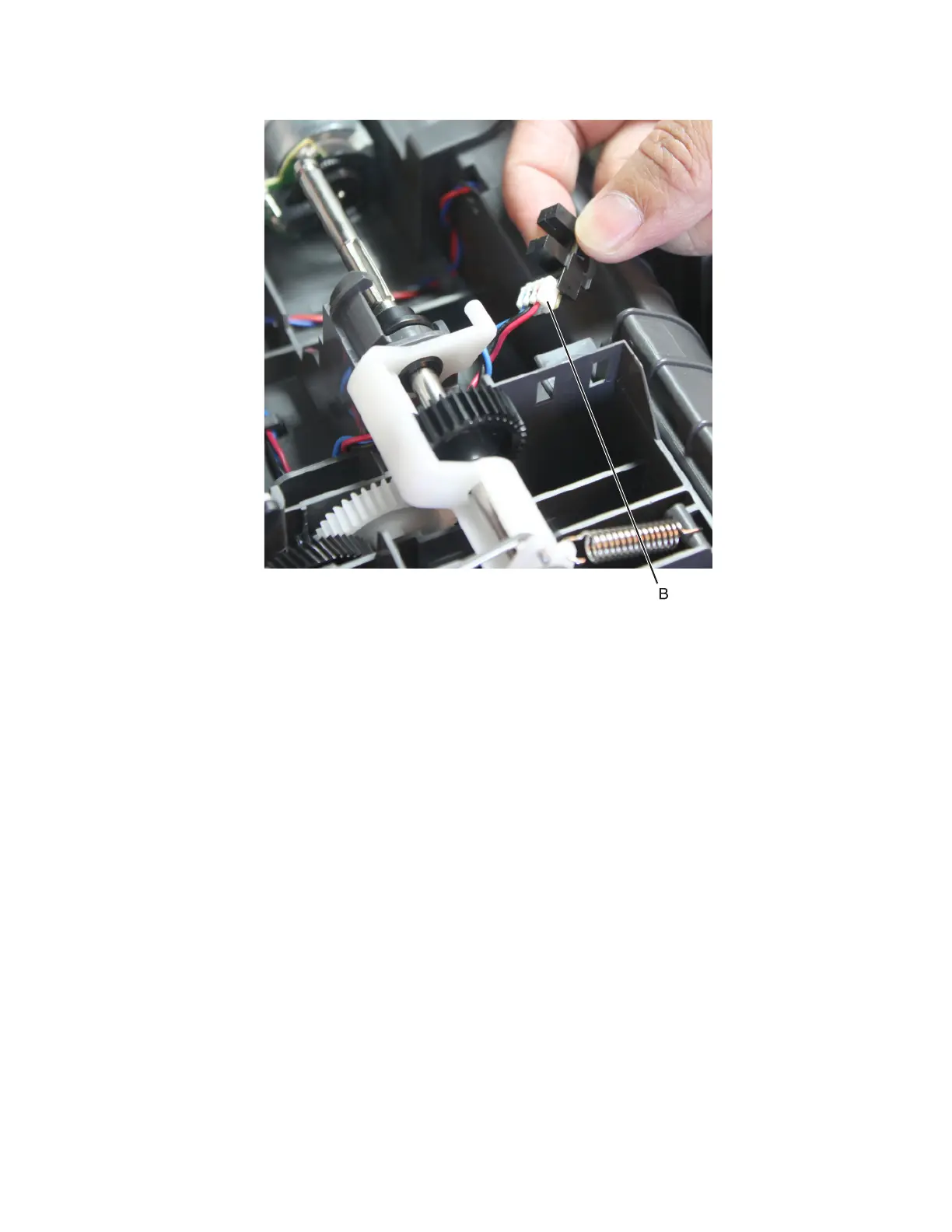

6 Disconnect the cable (B), and remove the sensor.
Sensor (HCIT pick) removal
1 Remove the HCIT. See “HCIT removal” on page 537.
2 Remove the drawer assembly rear cover. See “HCIT drawer assembly rear cover removal” on page 542.
3 Remove the drawer assembly left cover. See “HCIT drawer assembly left cover removal” on page 543.
4 Remove the top cover assembly. See “HCIT top cover assembly removal” on page 548.
7463
Repair information
556
