• “Output bin sensor cover removal” on page 356
• “Sensor (standard bin full) removal” on page 356
• “Standard bin cover removal (MX71x)” on page 357
• “Standard bin cover removal (MX81x)” on page 359
• “Upper redrive motor removal” on page 361
• “Upper redrive removal” on page 363
Cartridge door removal
1 Remove the toner supply cartridge.
2 Remove the imaging unit.
3 Remove the left cover. See “Left cover removal (MX81x)” on page 303.
4 Remove the right cover. See “Right cover removal (MX71x)” on page 311.
5 Open the rear door.
6 Remove the top cover. See “Top cover removal” on page 314.

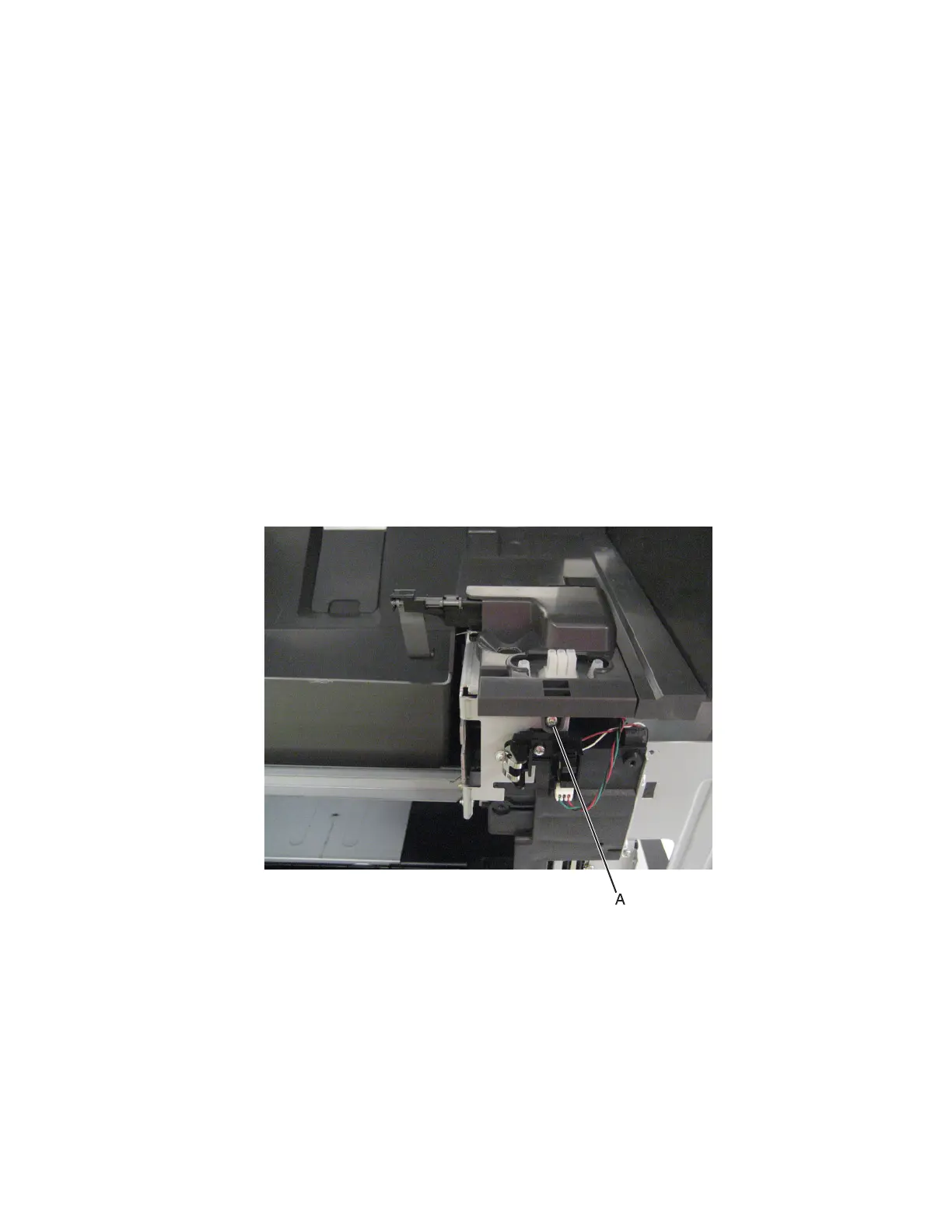

7 Remove the screw (A) securing the sensor cover to the machine.
7463
Repair information
353
