Lexmark MX811de - HCIT Drawer Assembly Left Cover Removal; HCIT Drawer Assembly Rear Cover Removal

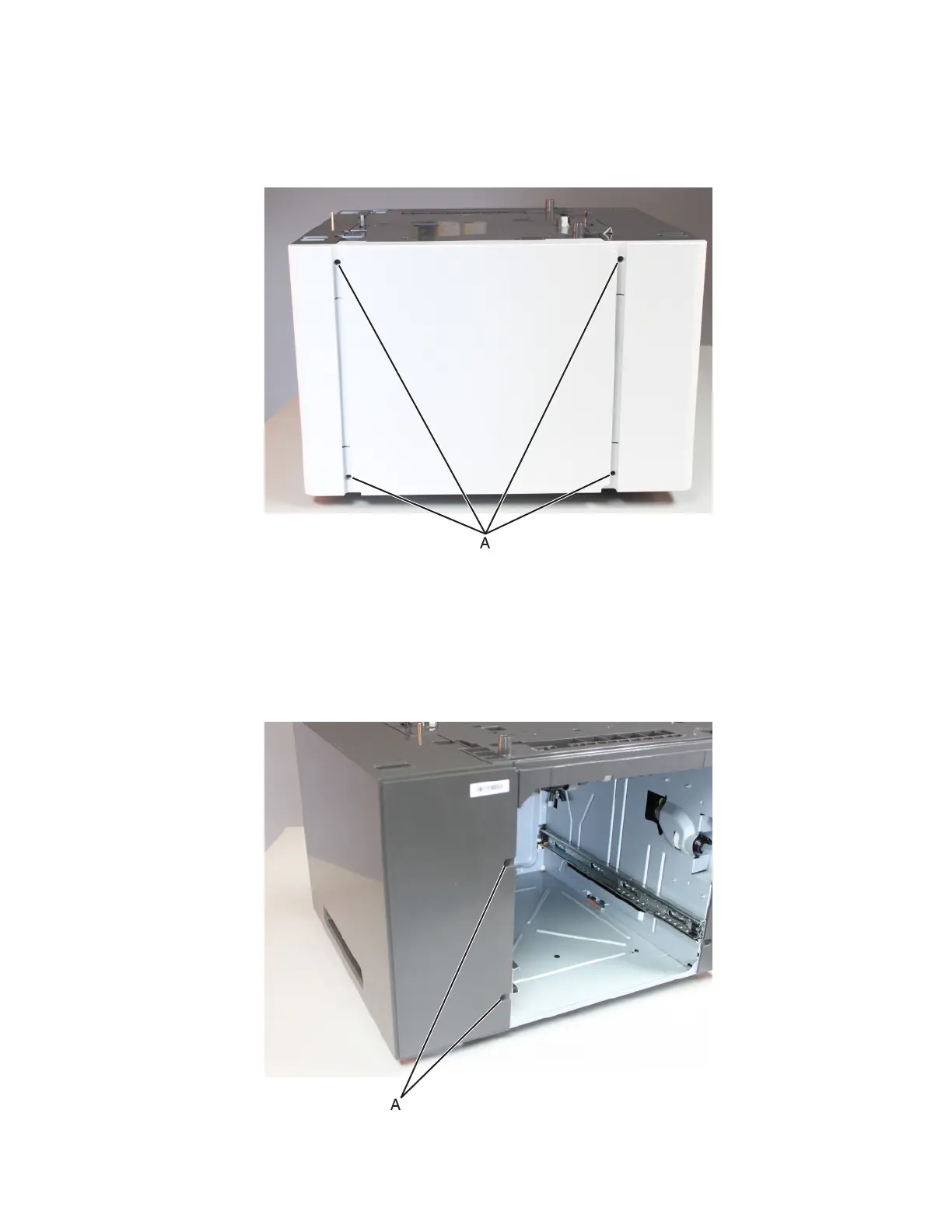

HCIT drawer assembly rear cover removal
Note: This is not a FRU.
1 Remove the four screws (A) from the drawer rear cover.
2 Ease the drawer assembly rear cover off the drawer, and remove.
HCIT drawer assembly left cover removal
1 Remove the drawer assembly rear cover. See “HCIT drawer assembly rear cover removal” on page 580.
2 Remove the two screws (A) from the front side of the cover.
7463
Repair information
580
