Lexmark MX811de - Left Cover Removal (Mx71 X)

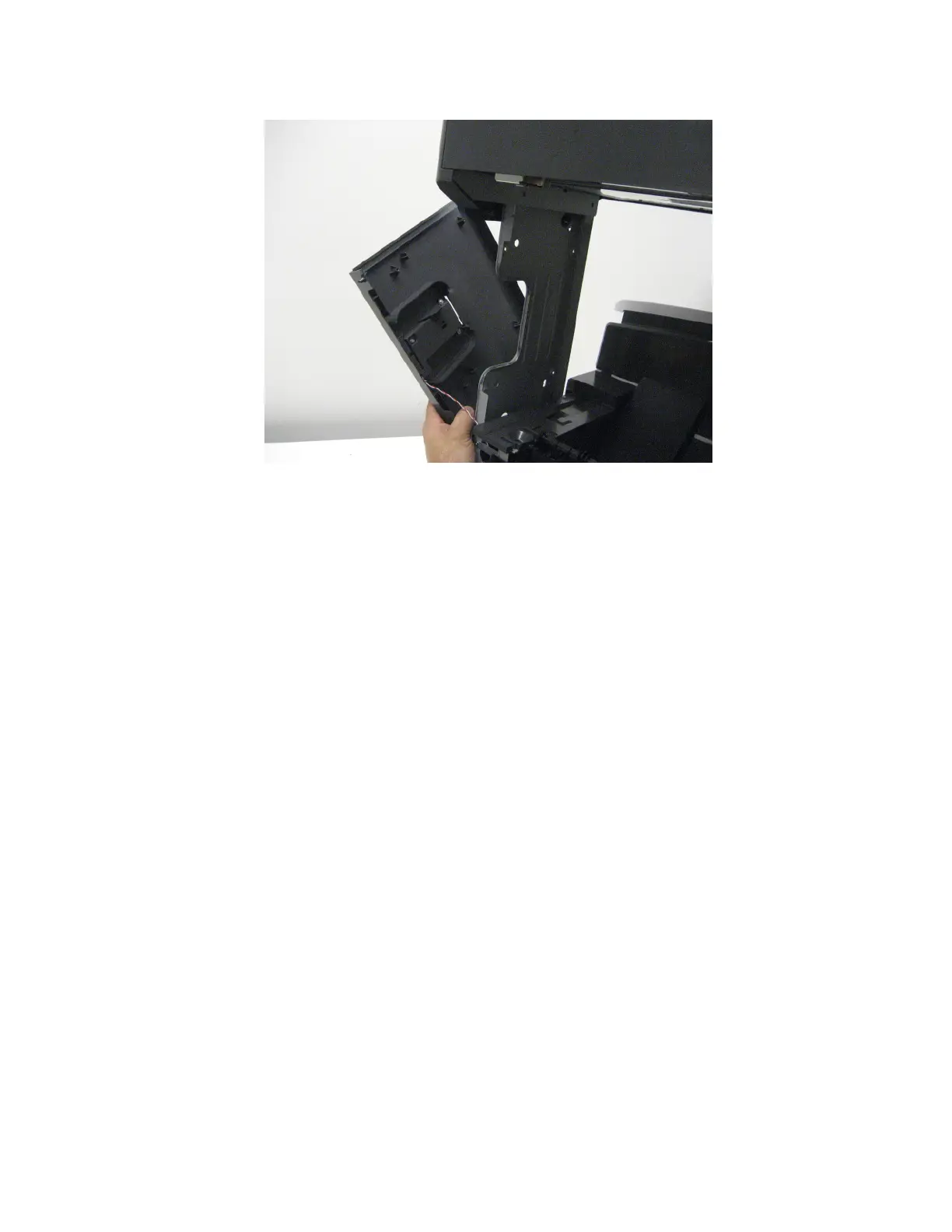

4 Remove the column right outer cover.
5 Disconnect the cables.
Left cover removal (MX71x)
1 Open the front door.
2 Pull the media tray from the machine.
3 Raise the control panel to its uppermost position.
4 Open the rear door.
5 Detach the controller board access cover.
7463
Repair information
301
