Lexmark MX811de - ADF Door Removal

ADF door removal
1 Remove the ADF front cover.
2 Remove the ADF rear cover.

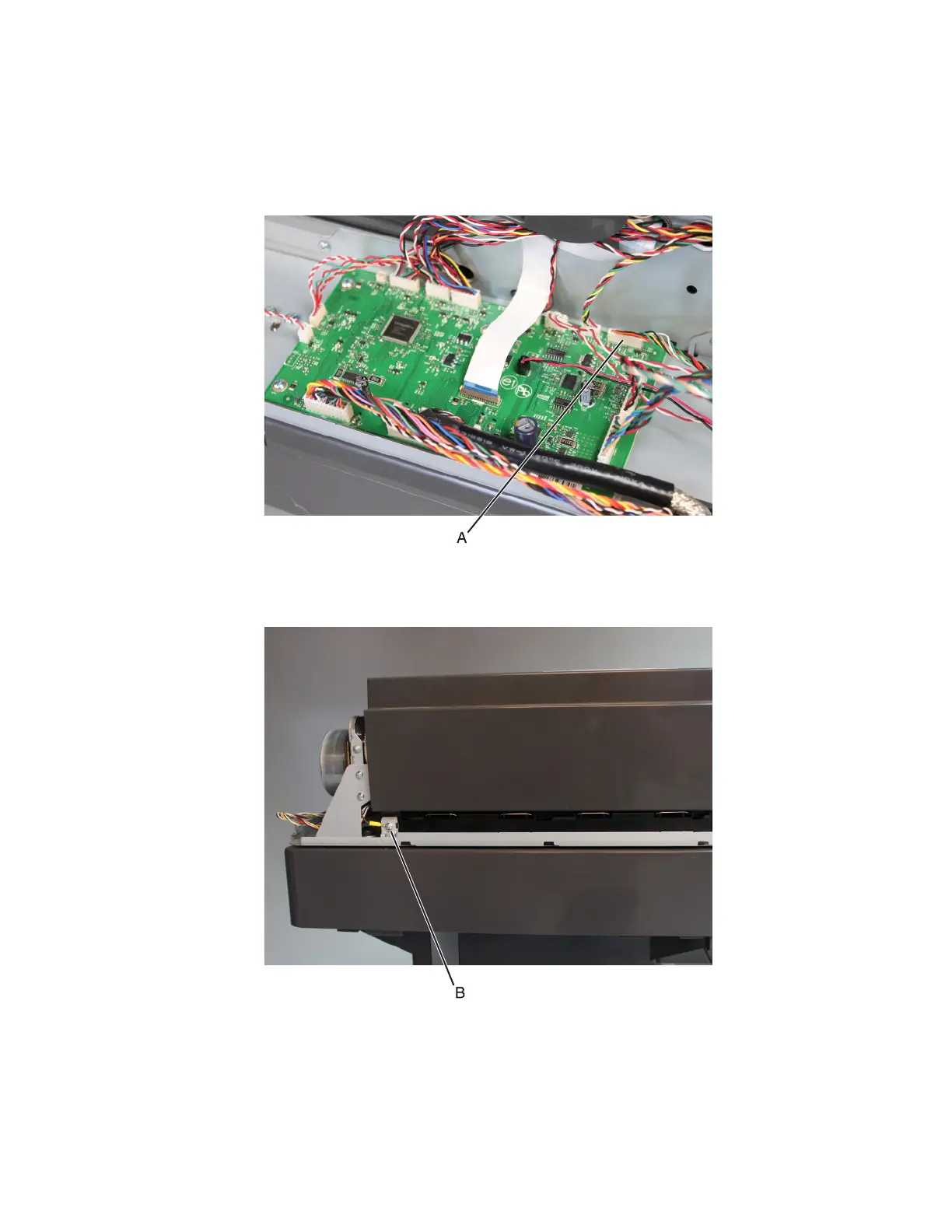

3 Disconnect the JHINGE1 cable (A) from the ADF controller.
4 Remove the ADF left lower cover.
5 Remove the screw (B) securing the ground cable.
7463
Repair information
455
