Lexmark MX811de - Control Panel Left Bezel Removal (Mx71 X)

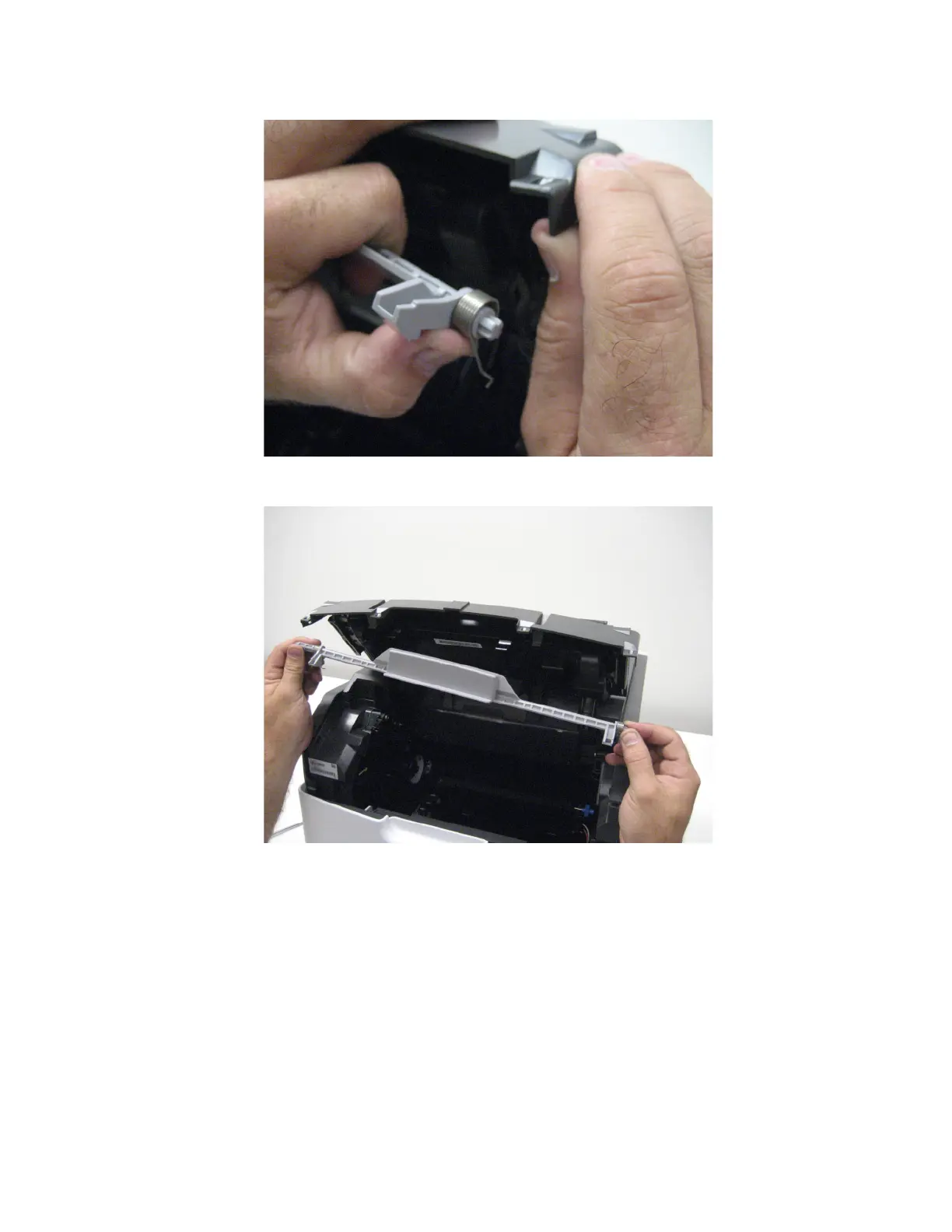

4 Gently flex the corner of the control panel frame as shown in the following image.
5 Gently remove the control panel latch.
Control panel left bezel removal (MX71x)
1 Remove the control panel front cover. See “Control panel front cover removal” on page 426.
2 Raise the control panel to its uppermost position.
7463
Repair information
429
