Lexmark MX811de - Tamper Motor (Left) Removal; Tamper Motor (Right) Removal

Tamper motor (right) removal
1 Remove the left cover. See “Stapler/offset stacker left cover removal” on page 597.
2 Remove the right cover. See “Stapler right cover removal” on page 617.
3 Remove the top cover. See “Stapler/offset stacker top cover removal” on page 599.

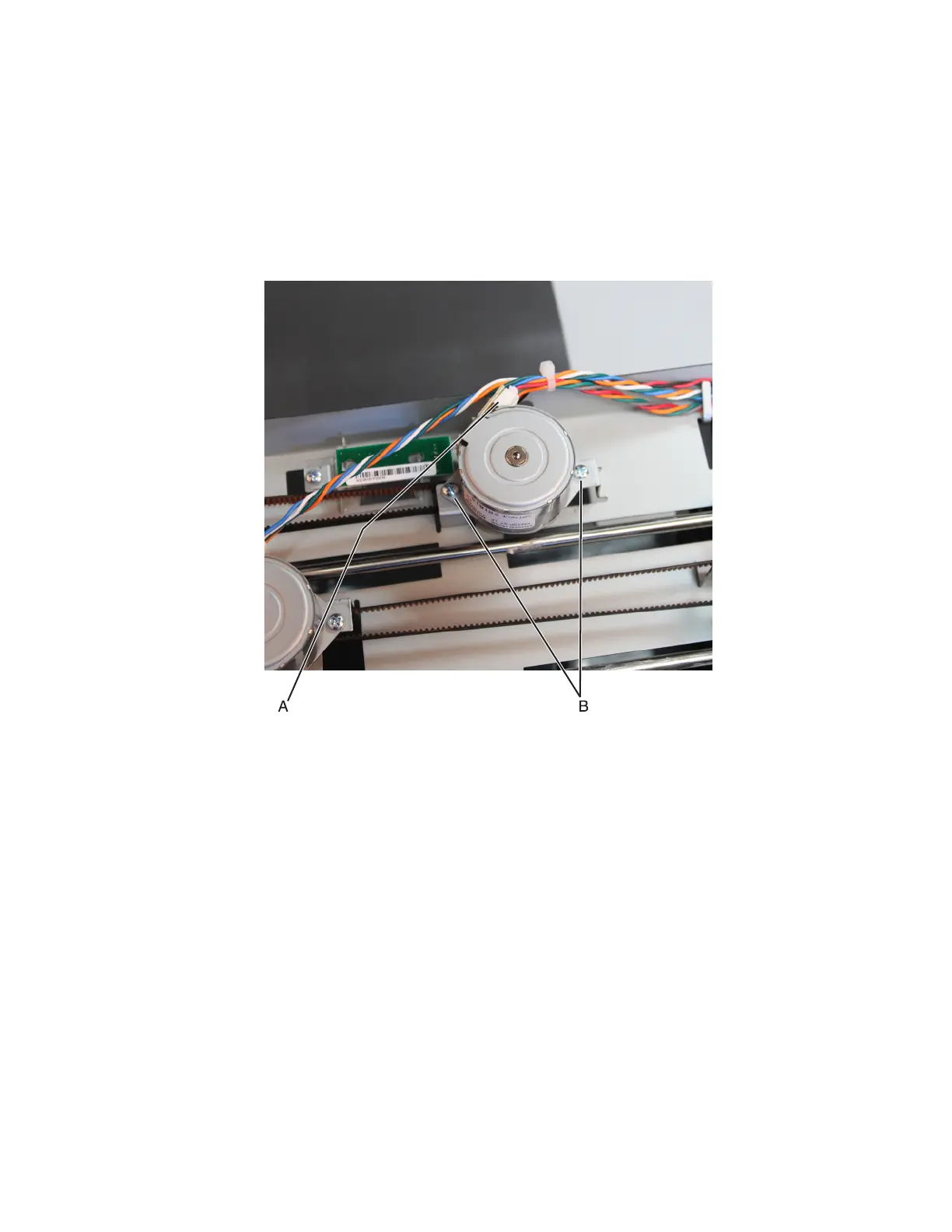

4 Disconnect the tamper motor cable (A).
5 Remove the two screws (B), then remove the right tamper motor.
Tamper motor (left) removal
1 Remove the left cover. See “Stapler/offset stacker left cover removal” on page 597.
2 Remove the right cover. See “Stapler right cover removal” on page 617.
3 Remove the top cover. See “Stapler/offset stacker top cover removal” on page 599.
4 Disconnect the tamper motor cable (A).
