Lexmark MX811de - Interrupt with Flag Sensor (ADF Media Exit) Removal

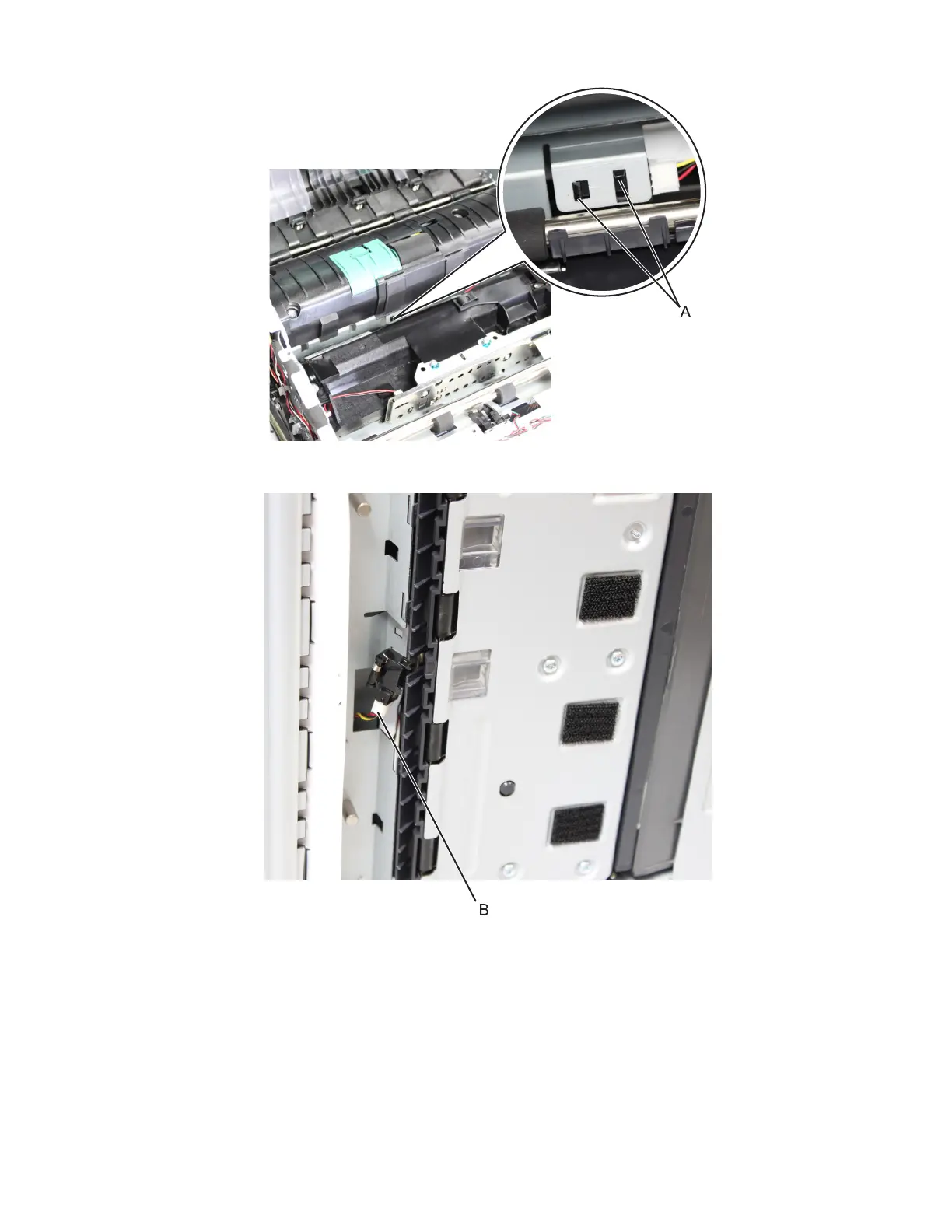

7 Disconnect the interrupt with flag sensor cable (B) to remove the interrupt with flag sensor.
Interrupt with flag sensor (ADF media exit) removal
1 Remove the ADF front cover. See “ADF front cover removal” on page 459.
2 Remove the ADF rear cover. See “ADF rear cover removal” on page 470.
3 Remove the ADF left lower cover. See“ADF left lower cover removal” on page 464.
4 Open the ADF door.
7463
Repair information
487
