HCIT and drawer assembly removal

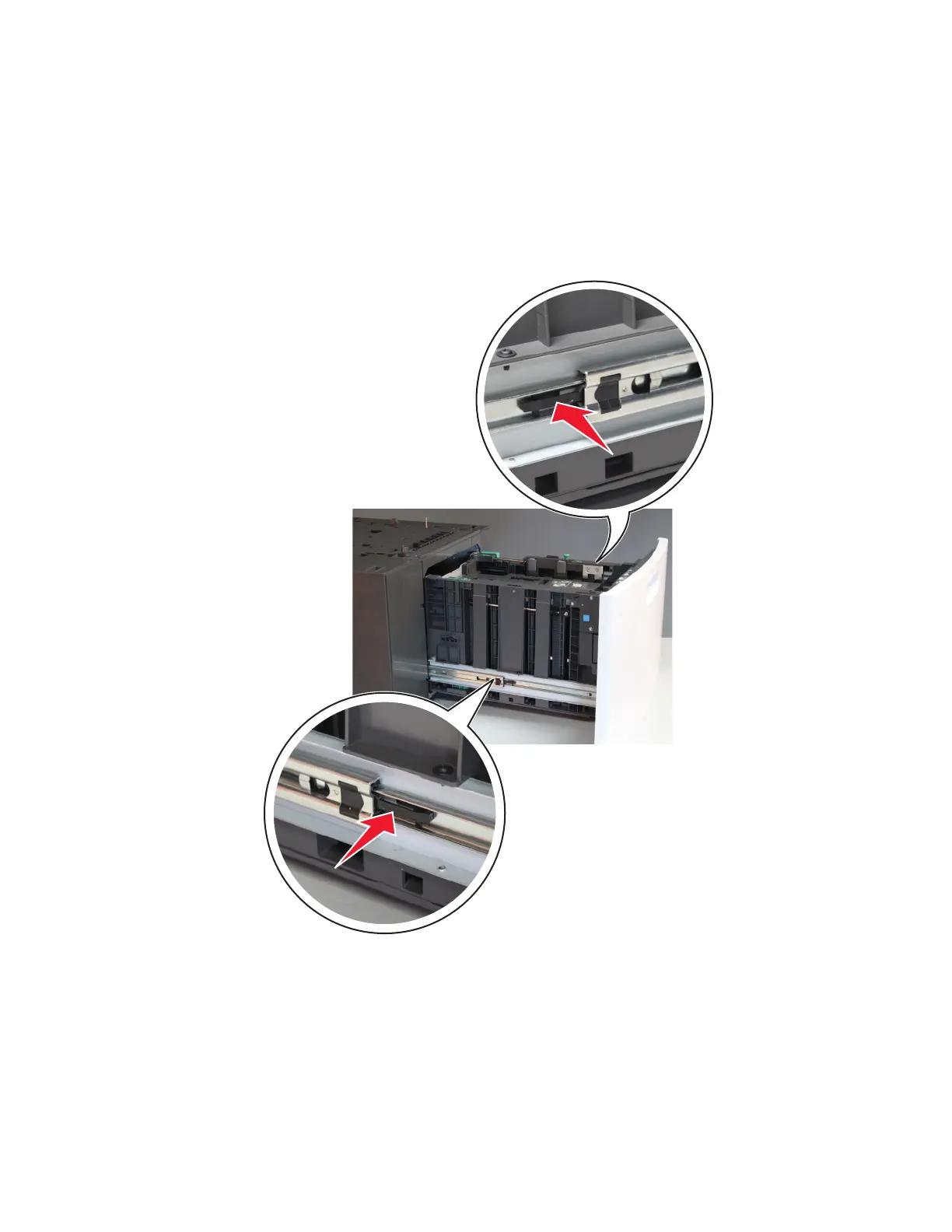

1 Push the latch sideward until it locks.
2 Lift the printer or drawer above it, and separate.
HCIT removal
1 Fully extend the tray, then press the left and right latches to release the tray.
2 Pull the media tray out of the drawer.
HCIT drawer assembly removal
Remove the HCIT. See “HCIT removal” on page 576.
The drawer remains.
