Lexmark MX811de - Sensor (ADF Gap Detect) Removal

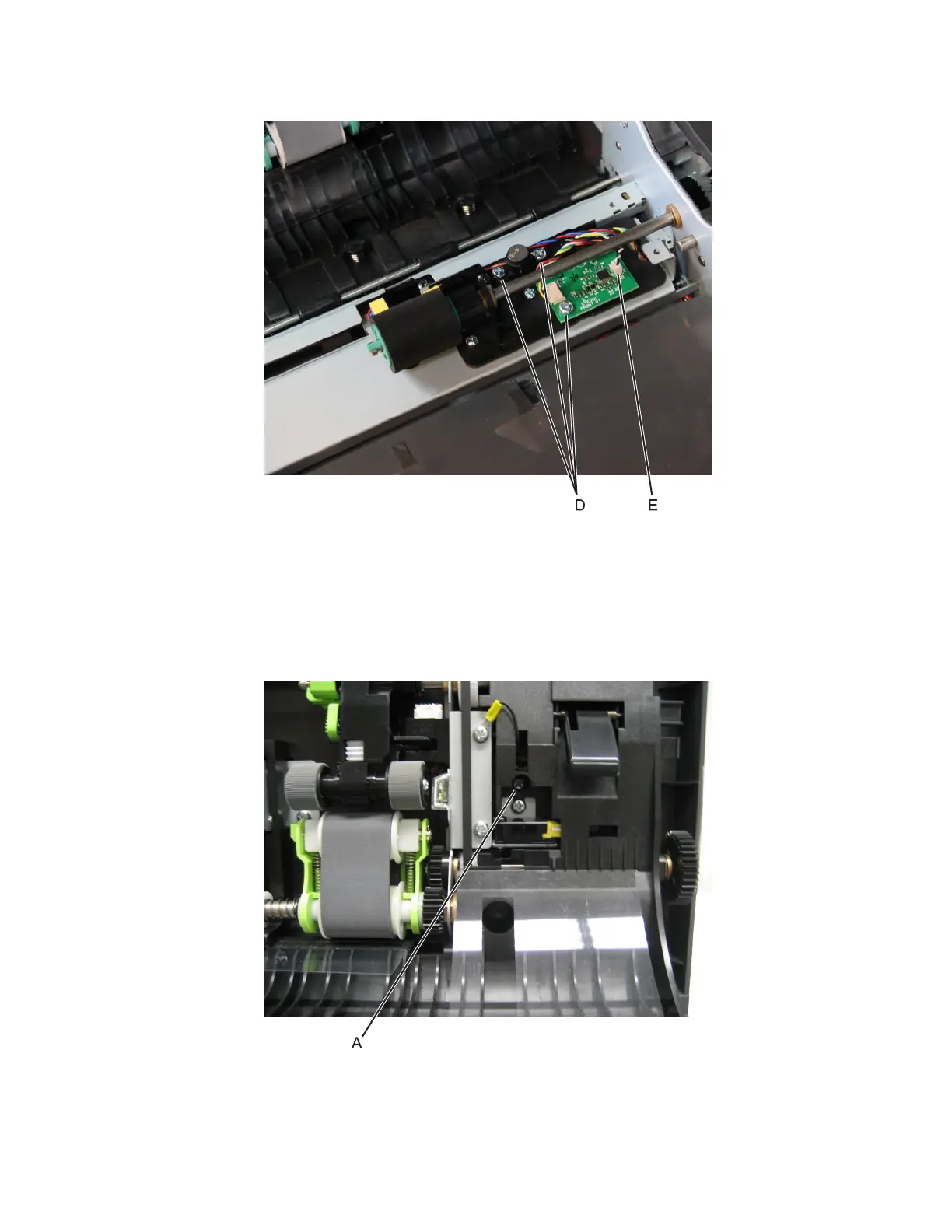

13 Disconnect the cable (E) from the multifeed sensor parts kit.
Sensor (ADF gap detect) removal
1 Open the ADF door.
2 Remove the pick roller cover. See “ADF pick roller cover removal” on page 467.
3 Remove the screw (A) securing the sensor (ADF gap detect) to the assembly.
7463
Repair information
492
