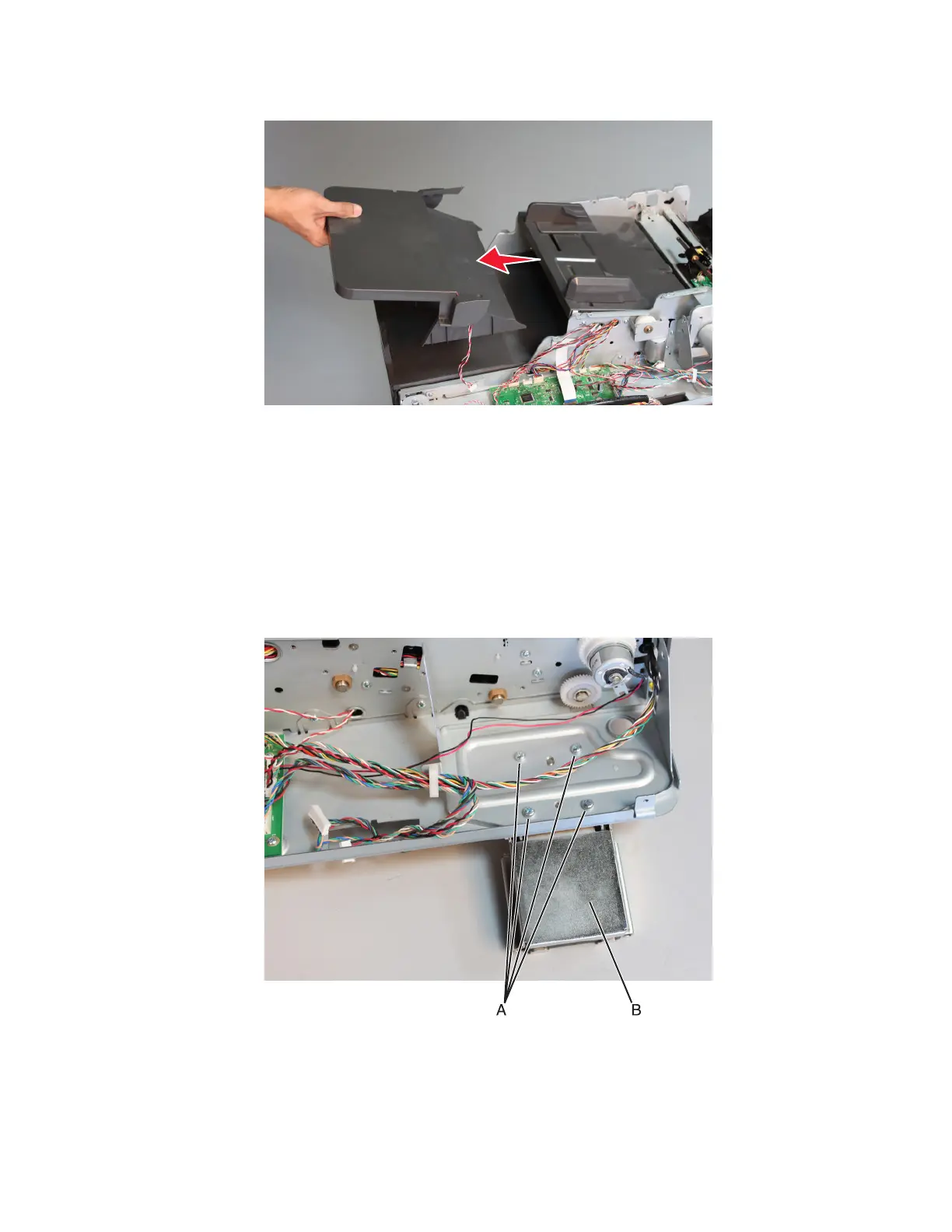

5 Remove the ADF input tray.
ADF left hinge removal
1 Remove the ADF rear cover. See “ADF rear cover removal” on page 470.
2 Remove the ADF assembly. See “ADF assembly removal” on page 448.
3 Remove the ADF rear side drive parts pack. See “ADF rear side drive parts pack removal” on page 472.
4 Remove the four screws (A) on the ADF left hinge.
5 Remove the ADF left hinge (B).
7463
