Lexmark MX811de - Sensor (Mailbox Divert Motor) Removal

Sensor (mailbox divert motor) removal
1 Remove the top cover. See “Mailbox top cover removal” on page 624.
2 Remove the mailbox left cover. See “Mailbox left cover removal” on page 630.

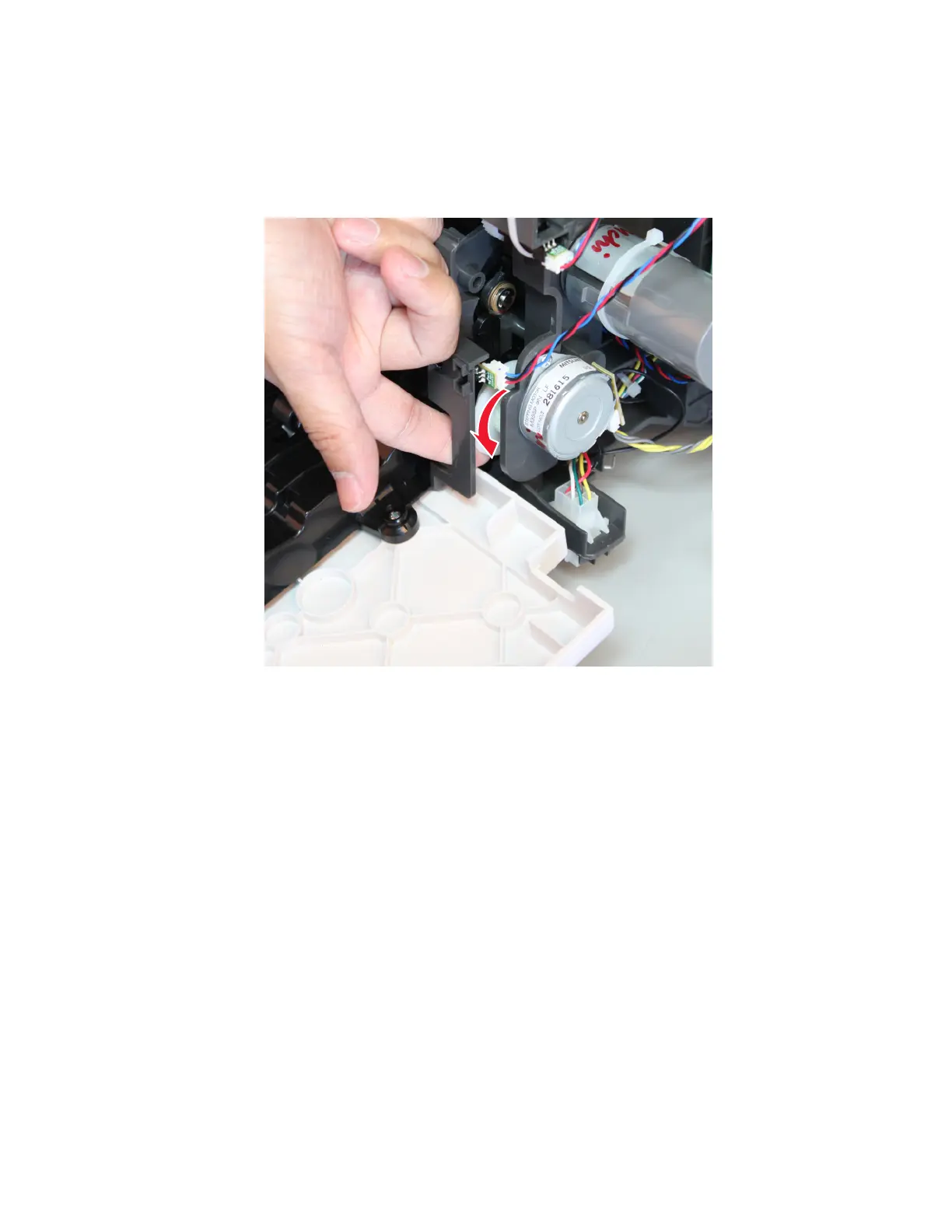

3 Rotate the cam to clear the obstacle blocking the sensor.
4 Disconnect the sensor cable (A).
7463
Repair information
633
