3

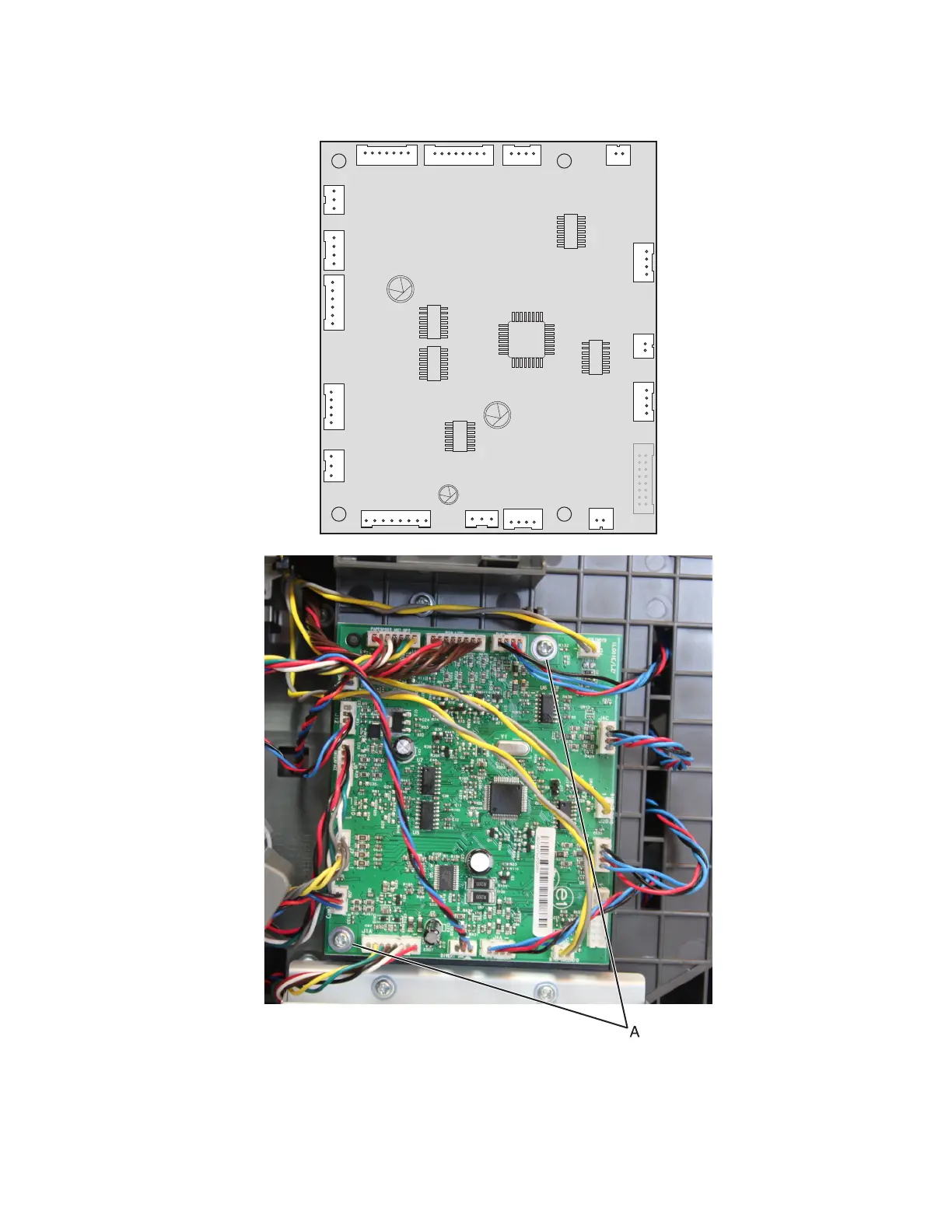

Discon
nect all ca
bles (J
1B, J5, J4D
, J2A,
J4C, J2B, J4B, J2C, J4A, J8, J1A, J3
B, J7, J6, J12, and J3T), and then
remove
the two screws (A)
from the contro
ller PCBA.
4
Remove the contro
ller PCBA.
7463
Rep
air
info
rma
tio
n
632
631
633
