Lexmark MX811de - Right Frame Extension Removal (Mx81 X)

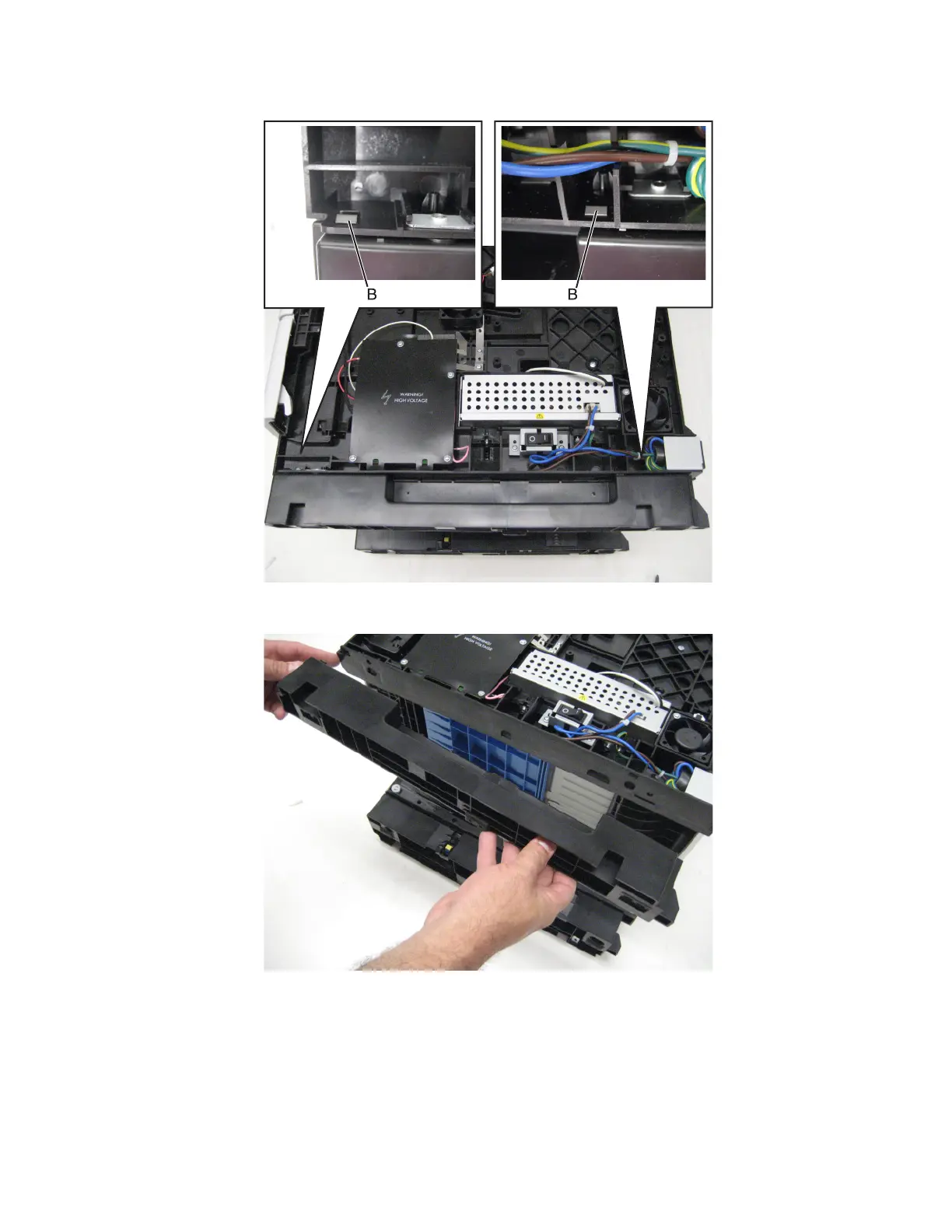

5 Release the two hooks (B) securing the right frame extension to the machine.
6 Remove the right frame extension.
Right frame extension removal (MX81x)
1 Remove the controller board access cover. See “Controller board access cover removal” on page 387.
2 Remove the controller board access shield. See “Controller board access shield removal” on page 388.
7463
Repair information
383
