Lexmark MX811de - Standard bin Cover Removal (Mx71 X)

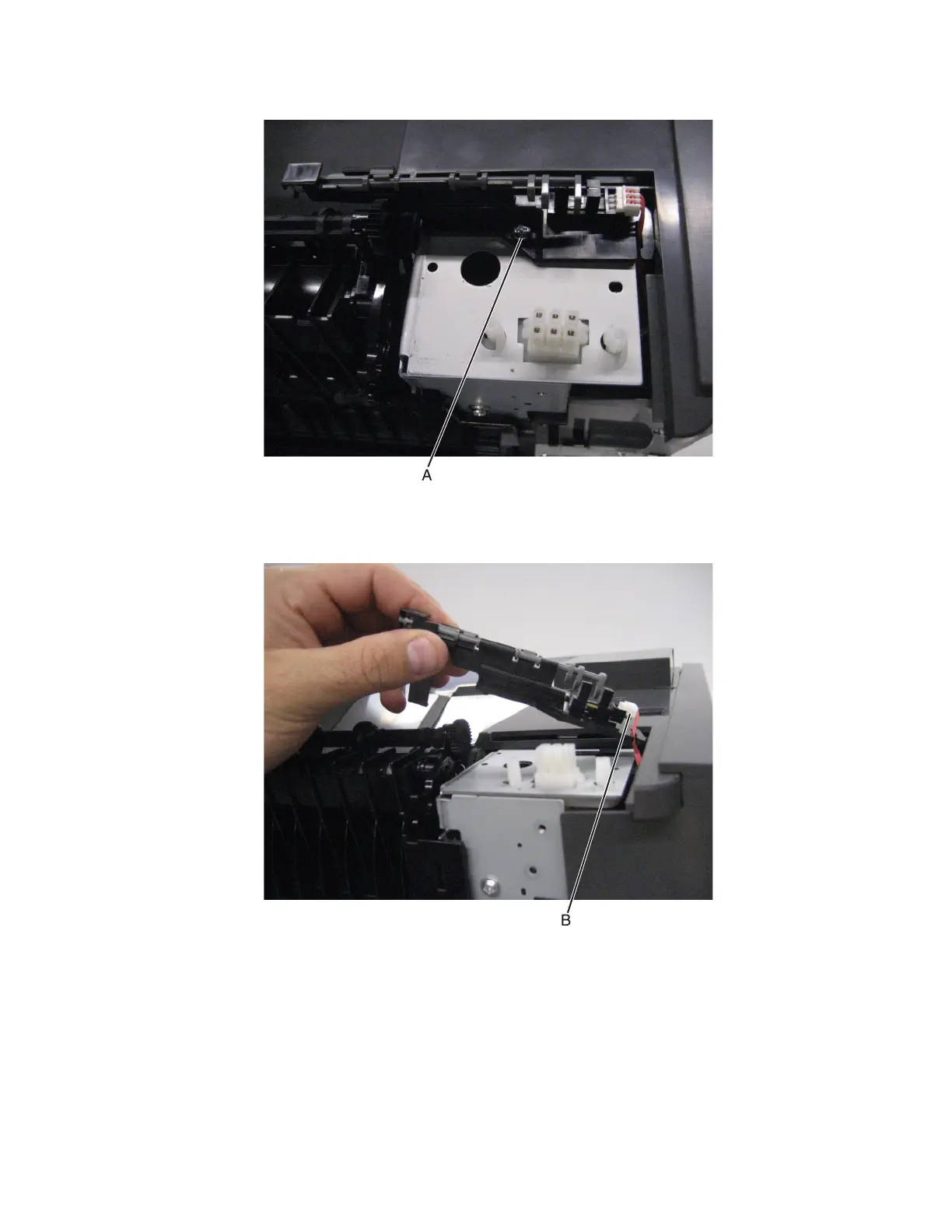

4 Remove the screw (A) securing the sensor (standard bin full) to the machine.
5 Remove the sensor (standard bin full).
6 Disconnect the cable (B).
Standard bin cover removal (MX71x)
1 Remove the left cover. See “Left cover removal (MX71x)” on page 301.
2 Remove the right cover. See “Right cover removal (MX71x)” on page 311.
3 Open the rear door.
4 Remove the upper redrive. See “Upper redrive removal” on page 363.
7463
Repair information
357
