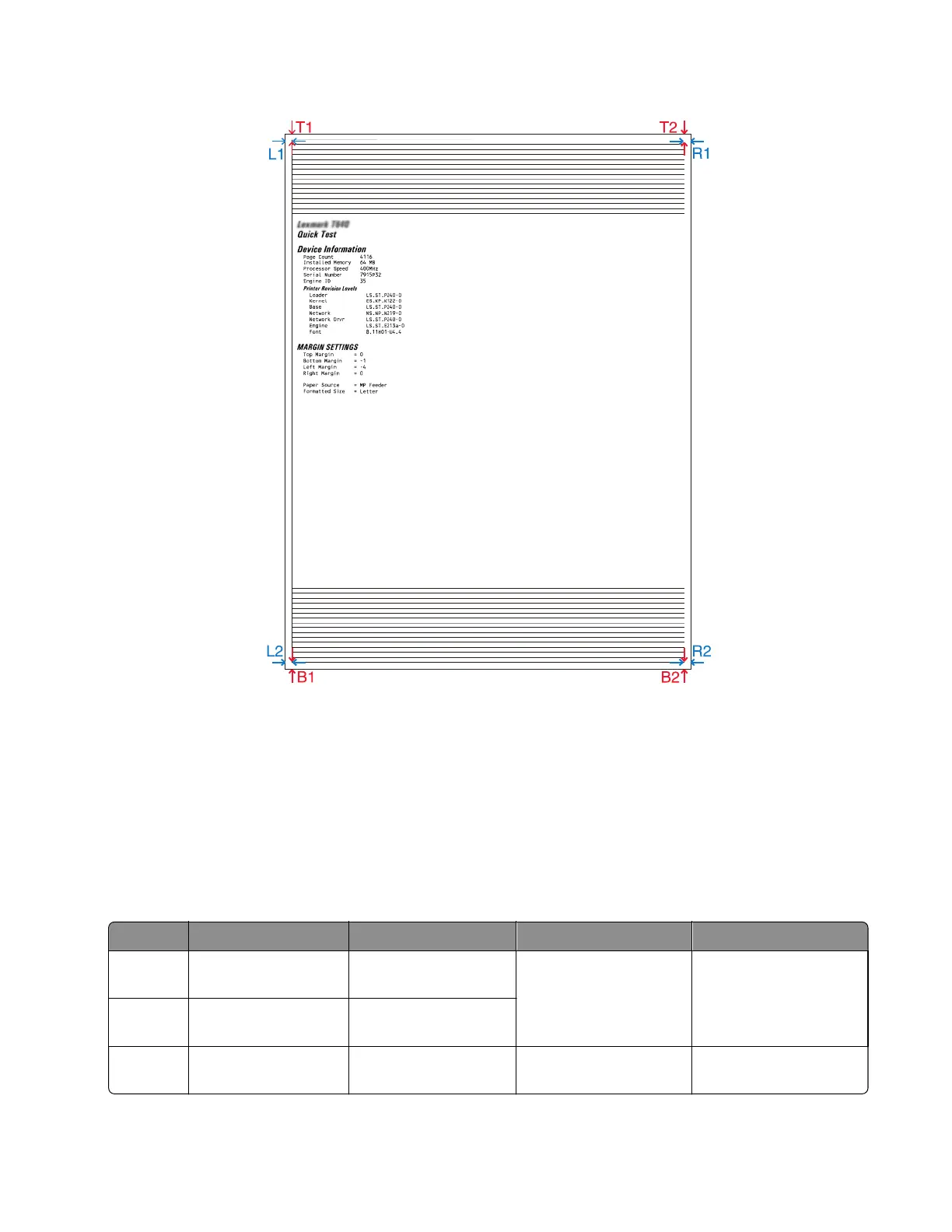

5 Measure L1, L2, T1, T2, R1, R2, B1, and B2 data points as shown in the following image.
6 Determine the following calculations:
• L2-L1 = ___
• R2-R1 = ___
• T2-T1 = ___
• B2-B1 = ___
7 Determine whether the printer passes or fails the skew specifications based on the values listed in the following
table:
Skew specifications
(L2-L1) (R2-R1) (T2-T1) (B2-B1)
Letter Less than or equal to 1.4
mm
Less than or equal to 1.4
mm
Less than or equal to 1 mm Less than or equal to 1 mm
A4 Less than or equal to 1.5
mm
Less than or equal to 1.5
mm
Legal Less than or equal to 1.8
mm
Less than or equal to 1.8
mm
