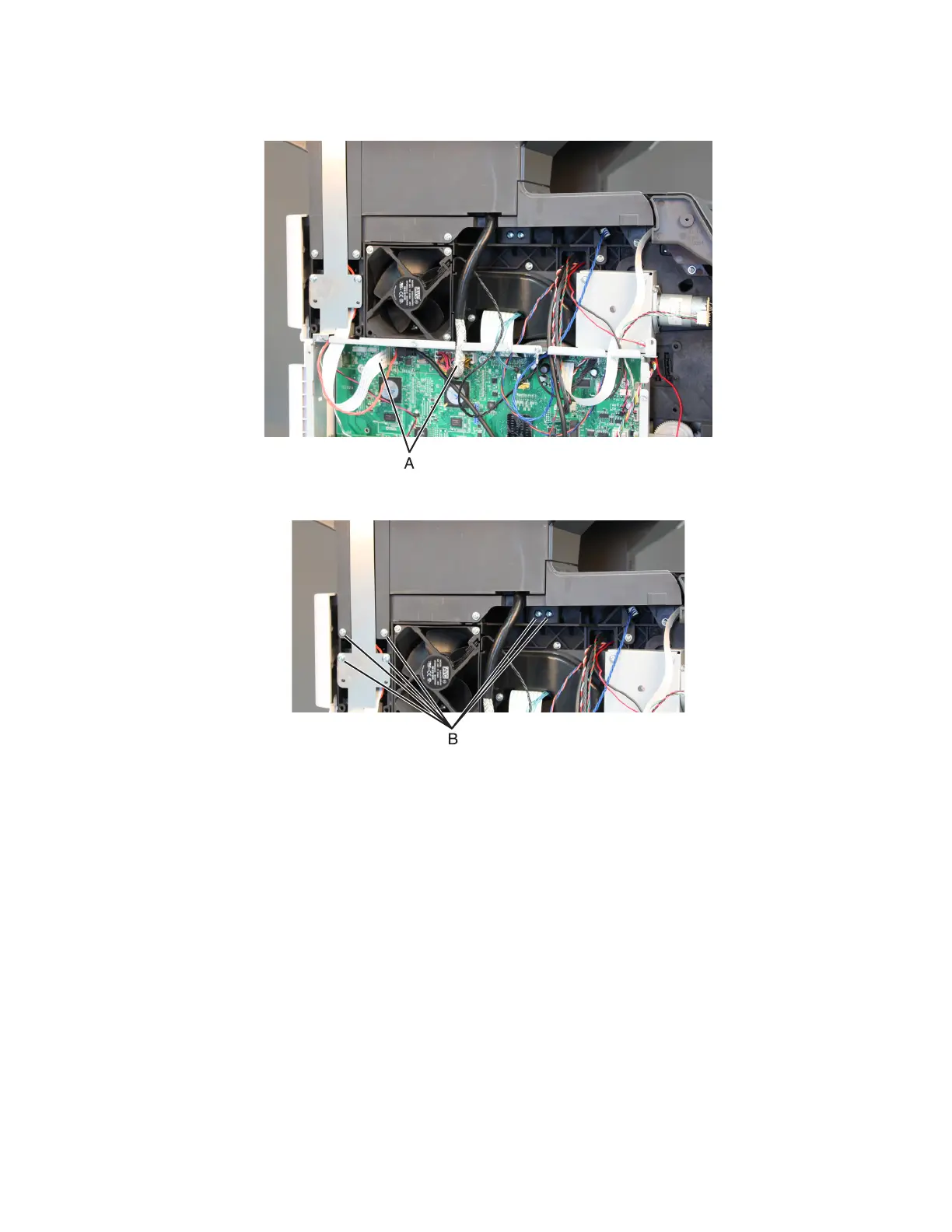

4 Disconnect the JADF1 and J51 cables (A) from the printer controller card, and then remove the cables from the
frame.
5 Remove the six screws (B) securing the flatbed assembly on the left side of the printer.
6 Remove the printer right cover. See “Right cover removal (MX71x)” on page 311.
