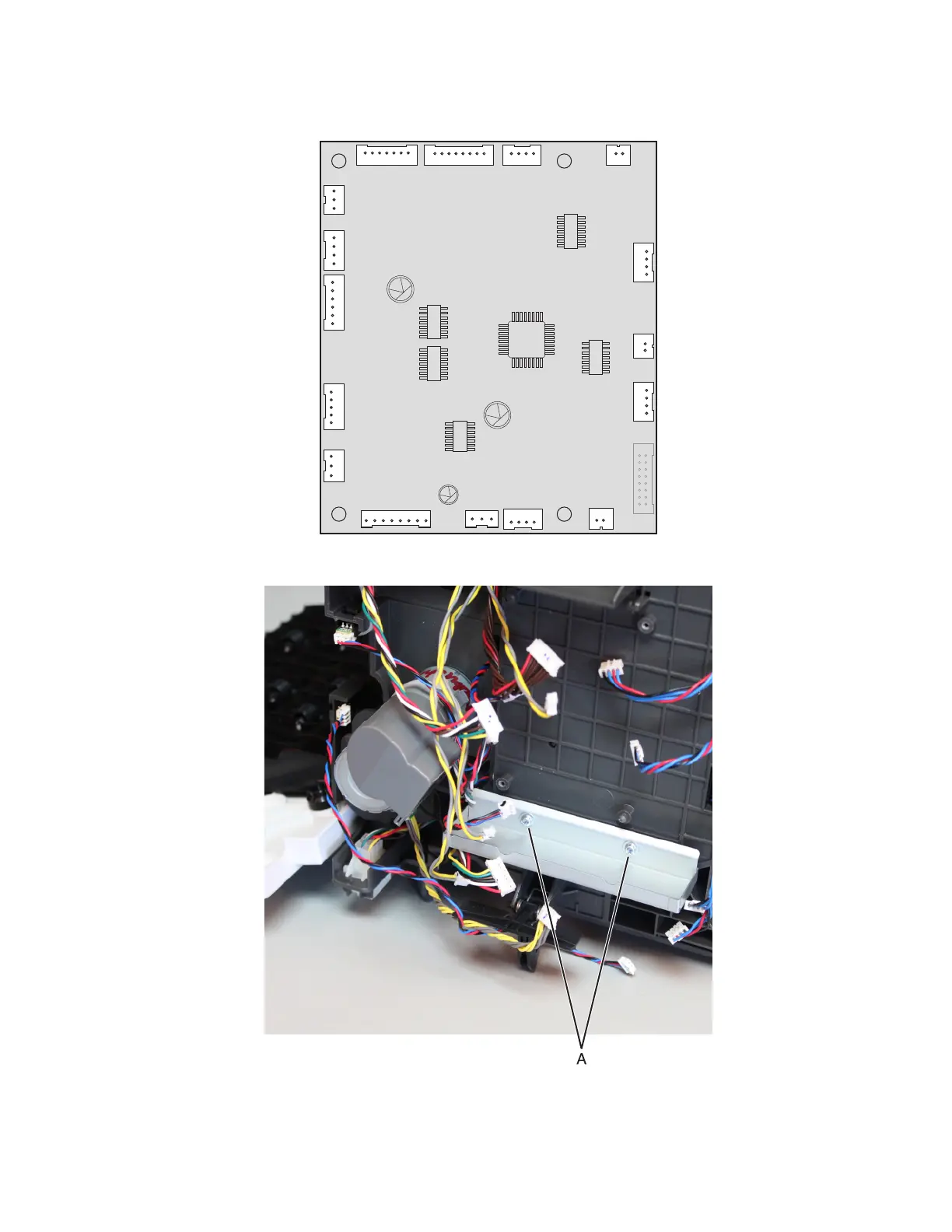

4
Discon
nect all ca
bles (J
1B, J5, J4D
, J2A,
J4C, J2B, J4B, J2C, J4A,
J8, J1A, J3B, J7, J6, J12,
an
d J3T)
from
the co
ntroll
er
PCBA.
5
Remove the tw
o screws (A
), then remove
the shie
ld.
7463
Rep
air
info
rma
tio
n
640
