Repair information 4-19
4060-xxx
Cover closed switch/cable removal
Note: Pay careful attention to the cable routing through the printer before you remove the cover
closed switch and cable assembly.
1. Remove the left cover, upper front cover, and outer system board shield.
2. Disconnect the cover closed switch cable from the system board (J3).

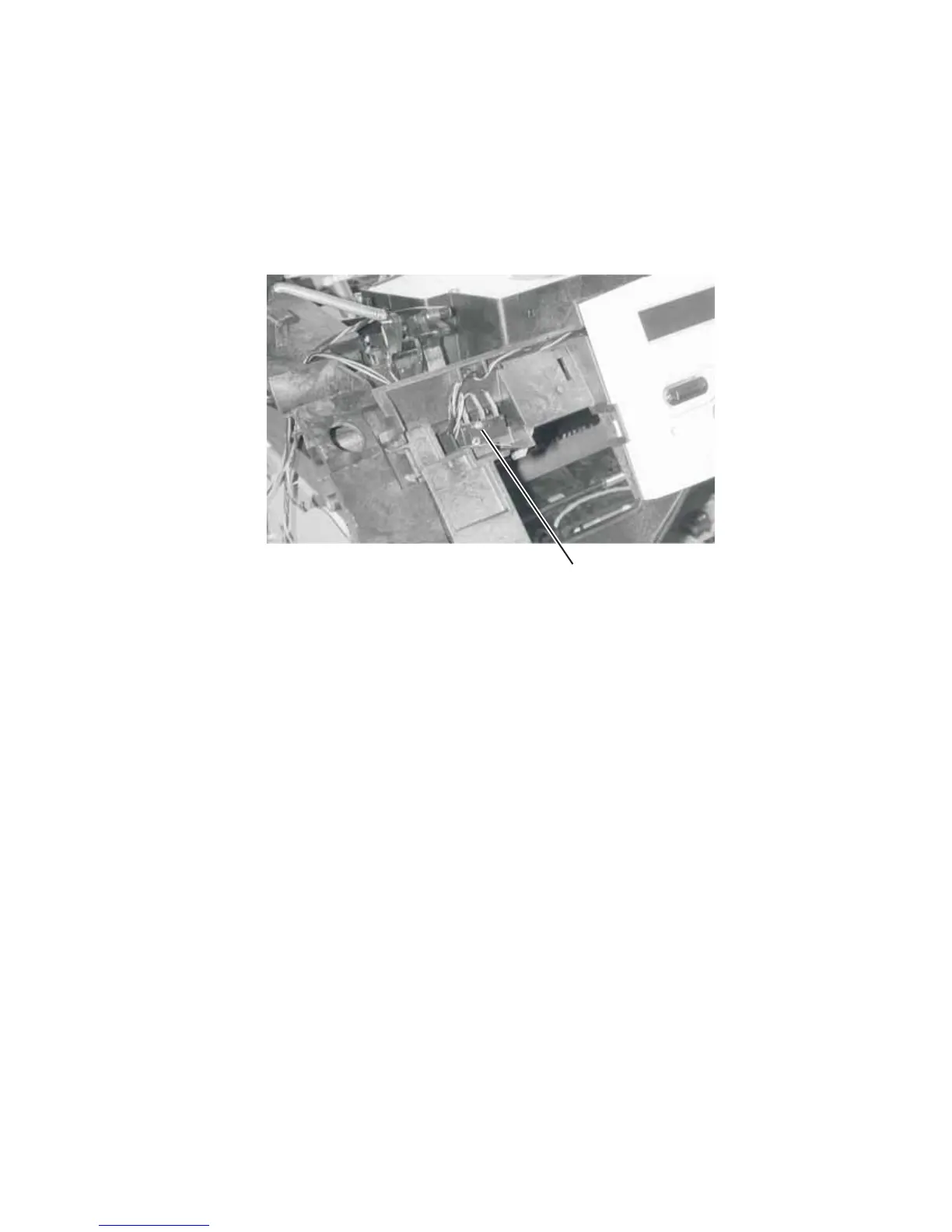

3. Remove the screw (A) that attaches the cover closed switch.
4. Remove the cable retainer from the left side of the upper front cover hinge assembly.
Note the routing of the cover closed switch and operator panel cables.
5. Remove the cover closed switch/cable assembly.
A
