Lexmark T632 - Staplesmart Finisher

5-8 Service Manual
4060-xxx
StapleSmart finisher

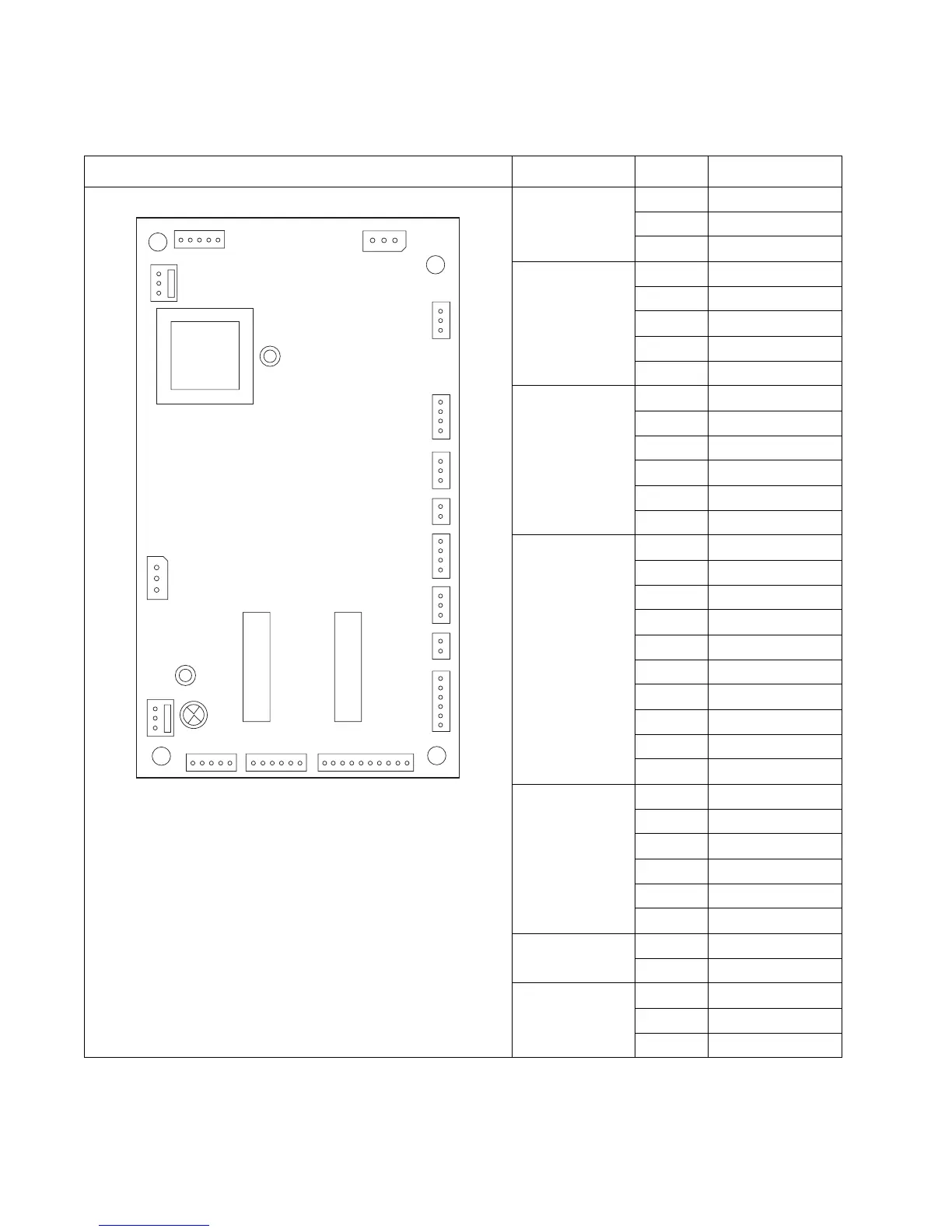

Connector Pin no. Signal
Staple card assembly J1A Bottom
autoconnect
1 +24 V dc
2Ground
3+5 V in
J1B Bottom
autoconnect
1rtxdin
2Ground
3prtrxd
4Ground
5Ground
J2 Feed motor 1 fdmtr1
2fdmtr2
3Ground
4Ground
5tachft
65Vptt
J3 Stepper
motor
1stpmtr-
2stpmtr-
3stpmtr+
4stpmtr+
5crtprsnt-
6stplow+
7 ‘stpphomo-
8Ground
95Vstpl
10 stprimed-
J4 Accessory
connector
1 +24 V dc
2accmtr-
3Ground
4Ground
5 tacha+
65Vptt
J5 Solenoid 1 Sol1-
2 +24 V dc
J6 Stapler 1 Ground
2pfrinstp+
35Vsnsr2
J14B
J13
J12
J10
J9
J8
J7
J6
J5
J15
J4
J3J2J1B
J1A
J14A
