Lexmark T632 - Envelope Feeder Board; Fuser Board

5-2 Service Manual
4060-xxx

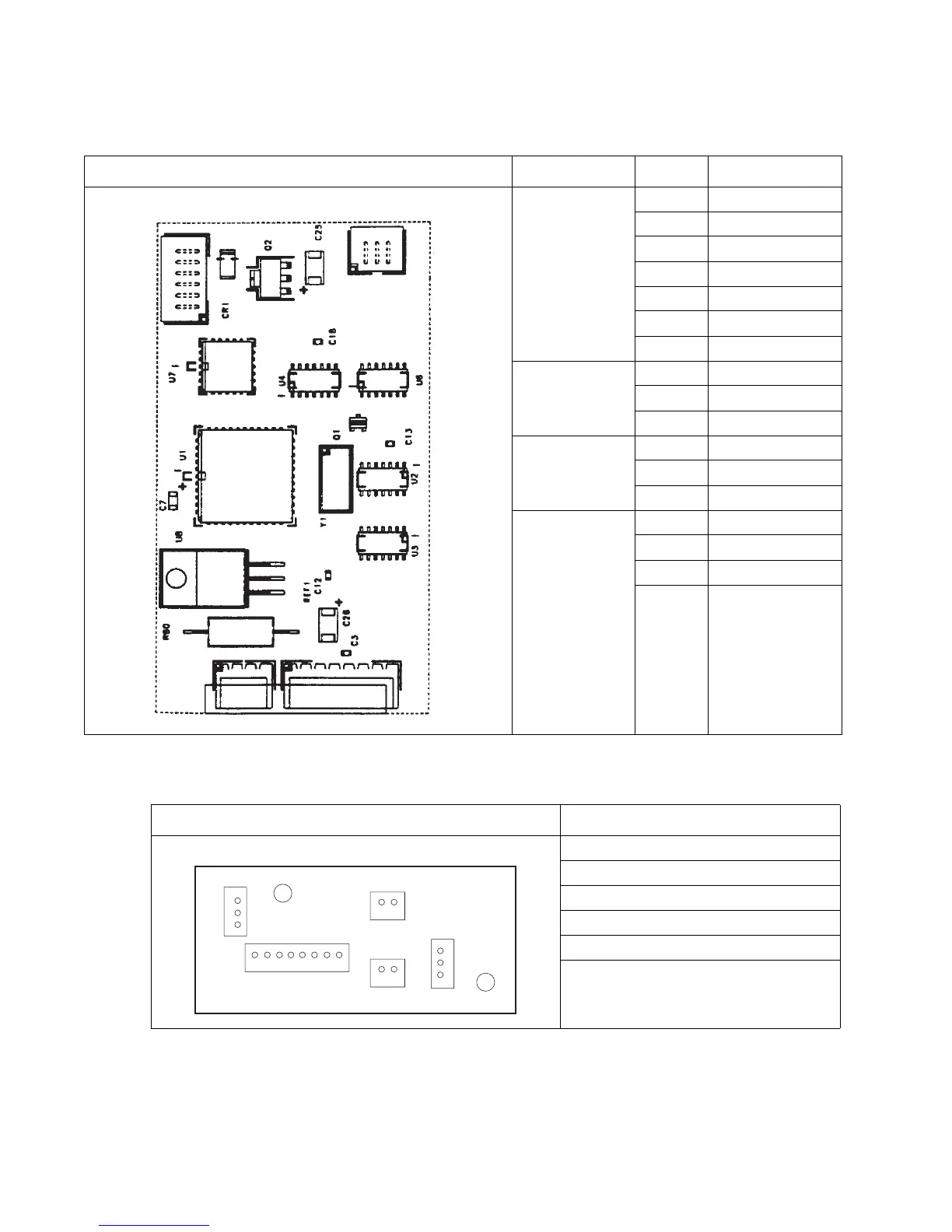

Envelope feeder board
Fuser Board
Connector Pin no. Signal
J1 1 N/A
2Ground
3Tx (EOC)
4Ground
5Rx (EOC)
6+24Vdc Return
7+24Vdc
J2 1 Ground
2 Paper Present
3+5Vdc
J3 1 Ground
2 Paper Present
3+5Vdc
J4 1 Motor - Phase B-
2 Motor - Phase A-
3 Motor - Phase B+
4 Motor - Phase A+
Fuser Board (not a FRU) Connectors
J1—System board
J2—Narrow media sensor
J3—N/A
J4—Solenoid
J5—Exit sensor
J6—Thermistor
J3
J1
1
1
J2
J4
1
1
J2
1
J1
J6
J4
J5
1
1
1
1
