Repair information 4-47
4060-xxx

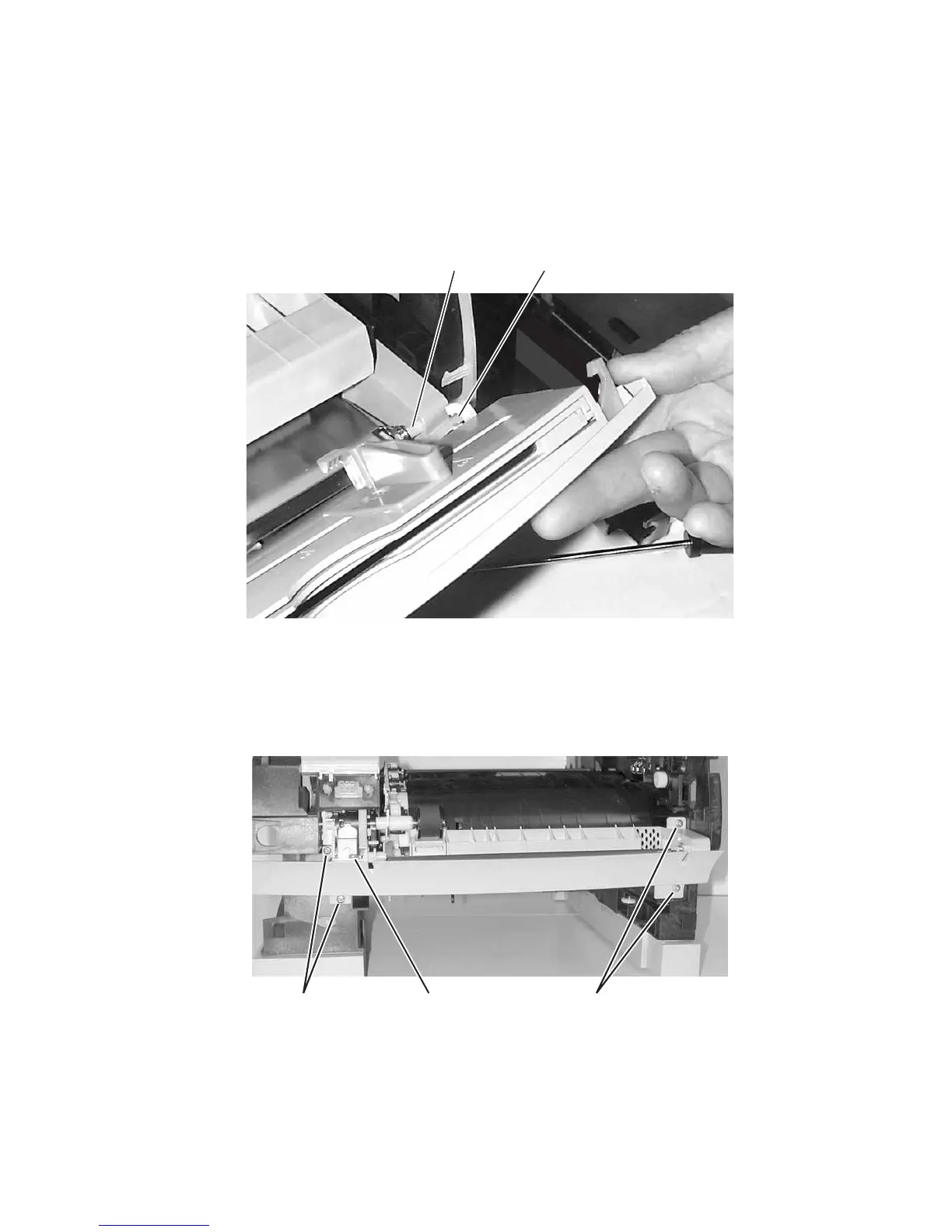

Multipurpose tray/lower deflector assembly removal
1. Open the multipurpose tray to a position that allows the left and right tray hinge slots (A) to align
with the rectangular mounting posts (B). Pull upward on each tray hinge to remove the tray from
the two mounting posts.
Warning: Be careful not to break the hinges.
2. Remove the upper paper deflector. See “Upper paper deflector assembly removal” on
page 4-63.
3. Remove the solenoid mounting screw (C).
4. Remove the screws (D) mounting the multipurpose tray/lower deflector assembly.
5. Remove the multipurpose tray/lower deflector assembly.
BA
D(102) D(104)C(102)
