Lexmark T632 - Page 181

Repair information 4-27
4060-xxx

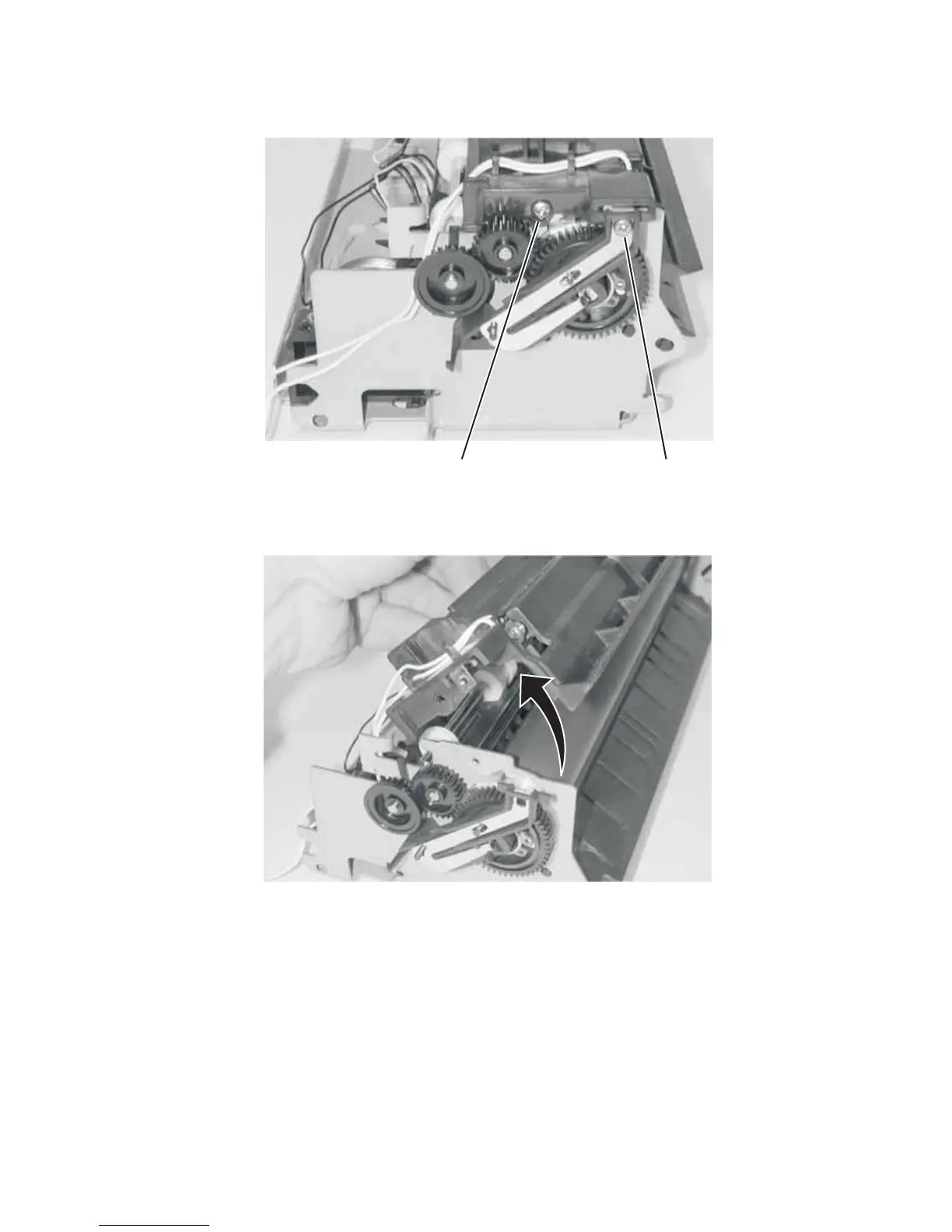

7. Remove screw (A) that attaches the fuser lamp contact to the fuser cover.
8. Remove the two screws (B), one on each side of the fuser, that attach the fuser upper cover
assembly to the fuser frame.
9. Remove the fuser laser cover.
AB
