Repair information 4-39
4060-xxx
Installation

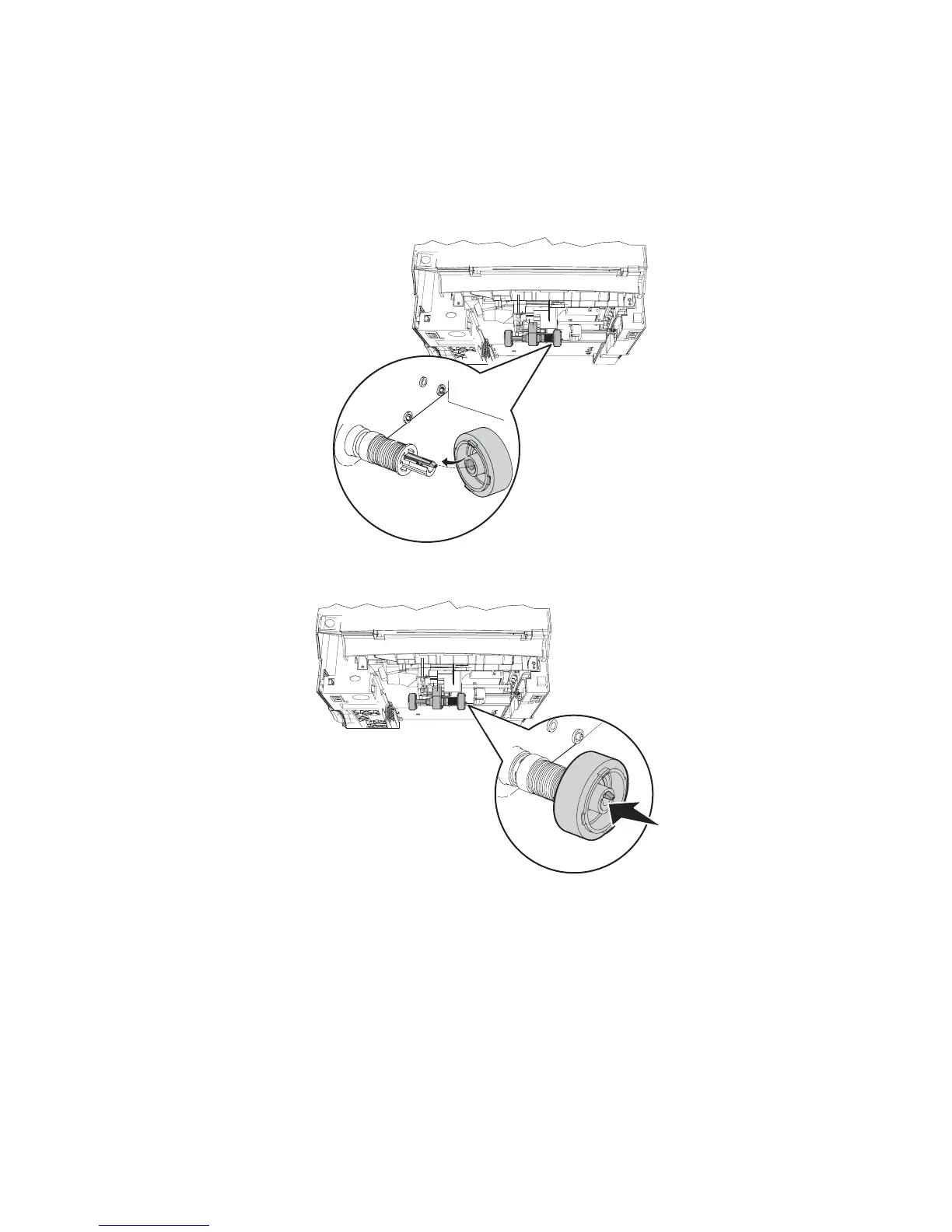

1. Remove the new pick rolls from their packaging.
2. Pull the autocompensator arm down. Locate the recessed area on the pick roll and align it with
the tab on the arm. There are two arrows on each pick roll. Make sure the bottom arrow faces
you as you align the recessed area with the tab.
3. Push the pick roll onto the arm with the tab aligned. Repeat this step on the other side to install
the other pick roll.
4. Gently release the autocompensator arm. Insert integrated tray.
