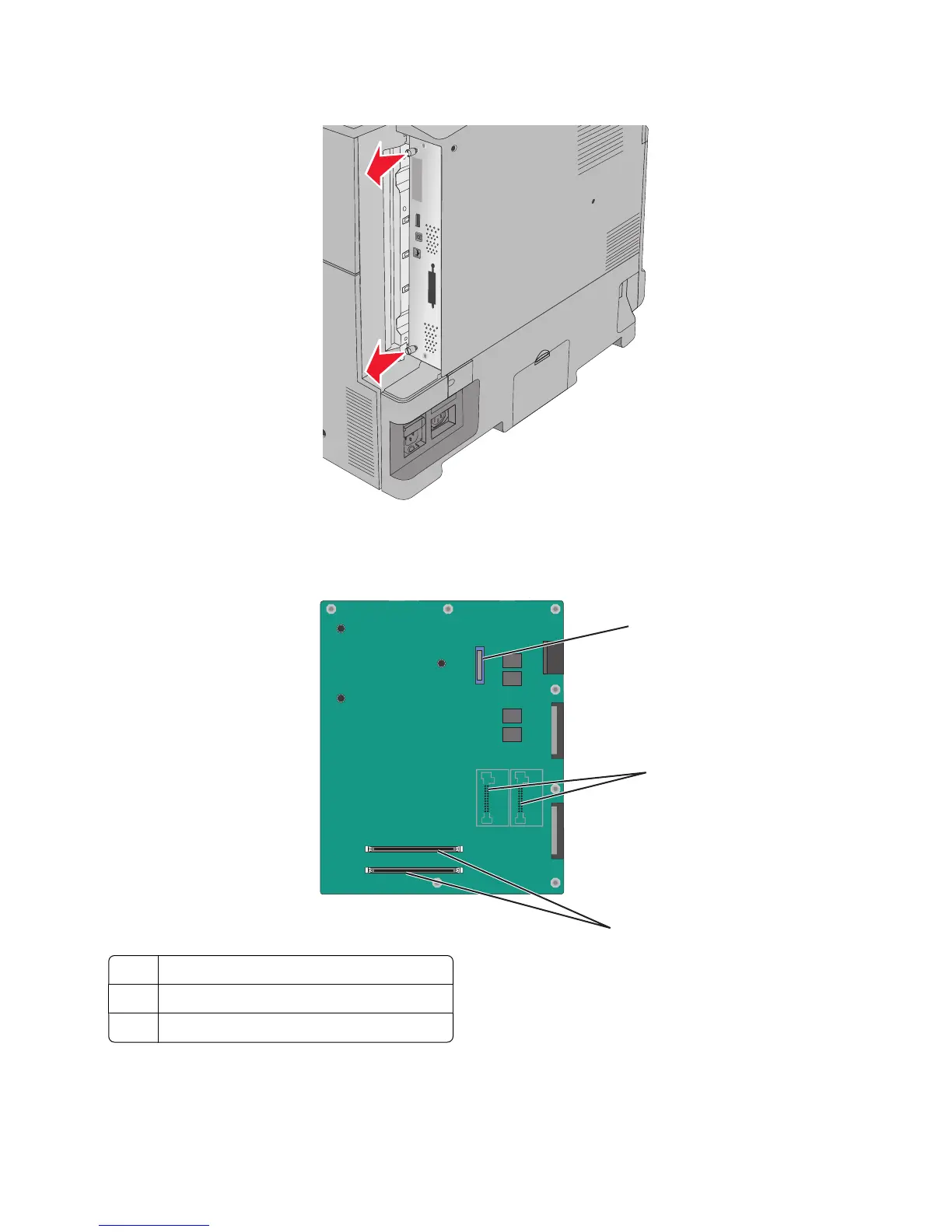

2 Pull the system board forward to remove it.
3 Use the following illustration to locate the appropriate connectors.
Warning—Potential Damage: System board electronic components are easily damaged by static electricity. Touch
something metal on the printer before touching any system board electronic components or connectors.
1
2
3
1 ISP connector
2 Firmware and flash memory card connectors
3 Memory card connectors
4 Reattach the system board cover.
Additional printer setup
34
