Page 13 of 96
© 2020 LINAK A/S

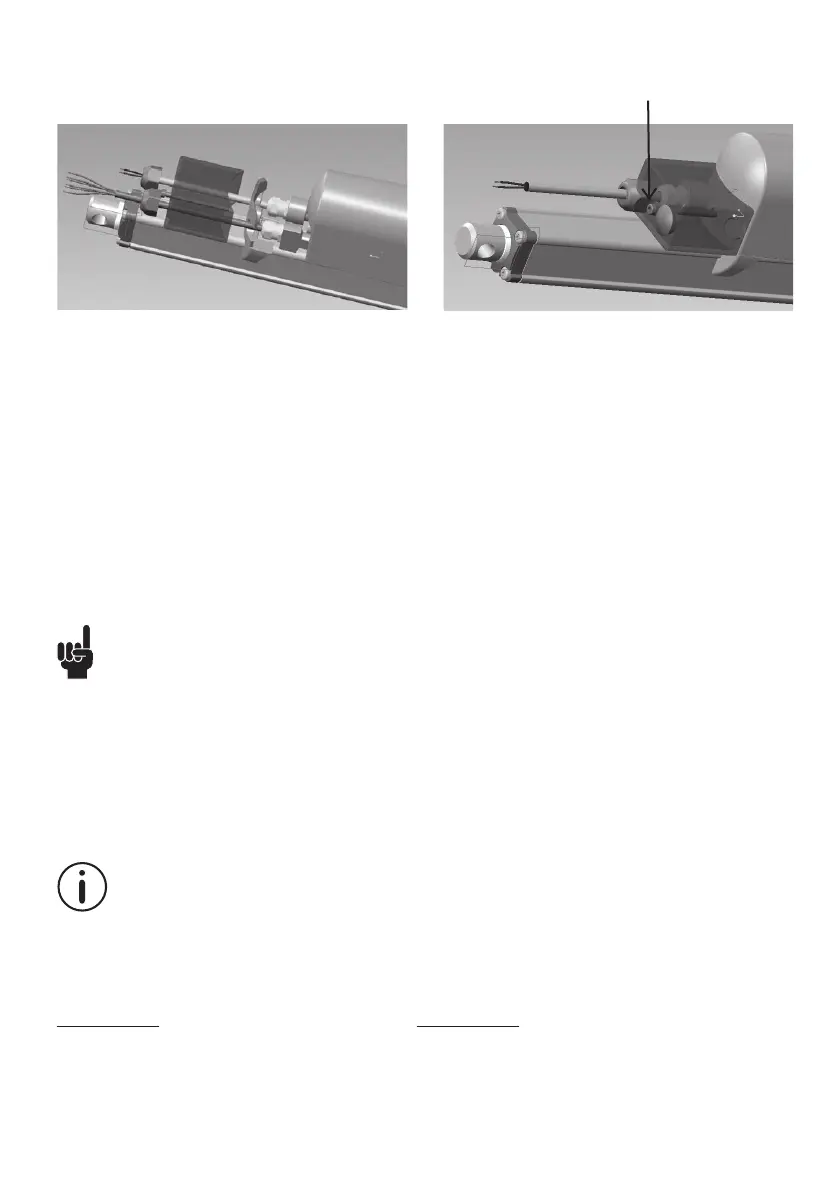

Mounting of cables with gland cover
When changing the cables on a LINAK actuator, it is important that this is done carefully, in order to
protect the plugs and pins. Please be sure that the plug is in the right location and fully pressed in before
the cable lid is mounted.
Please note that if the cables are mounted and dismounted more than 3 times the plugs can be damaged.
Therefore, we recommend that such cables are discarded and replaced.
Also note that the cables should not be used for carrying the actuator.
We recommend to take some precaution and design the wire connection in a way, where the cable end
is kept inside a closed, protected area to guarantee the high IP protection.
3. Slide the cover onto
the actuator.
The torque of the
cover screw is
approx. 3.5 ± 0.3 Nm
TORX 25IP
1. Unscrew the cover and
remove the two blind
plugs.
2. Plug in the power
cable and/or the
signal cable.
4 mm Allen key
Cable conduits for an LA36 IECEx/ATEX actuator must be ordered separately, if needed.
To order a cable conduits kit, please choose one of the following item numbers:
Item number 0368536-00 Item number 0368535-00
(compatible with one cable) (compatible with two cables)
The kit contains: The kit contains:
1 Cable gland cover 1 Cable gland cover
1 Gland nut: M20 x 1.5 (for 3/8” conduit) 2 Gland nuts: M20 x 1.5 (for 3/8” conduit)
1 Screw: DIN 912 M5 x 65 1 Screw: DIN 912 M5 x 65
1 Blind plug: M20 x 1.5
