Speed and current curves - 36V motor
All measurements above describe the spindle pitch (e.g. 20mm) and the gear type
(e.g. E gear) of the actuator.
Speed and current are based on a nominal power supply of 12, 24, 36, 48VDC.
The values below are typical values and made with a stable power supply and an ambient temperature of 20˚C.
0
2
4
6
8
10
0 2000 4000 6000 8000 10000
Ampere
Load (N)

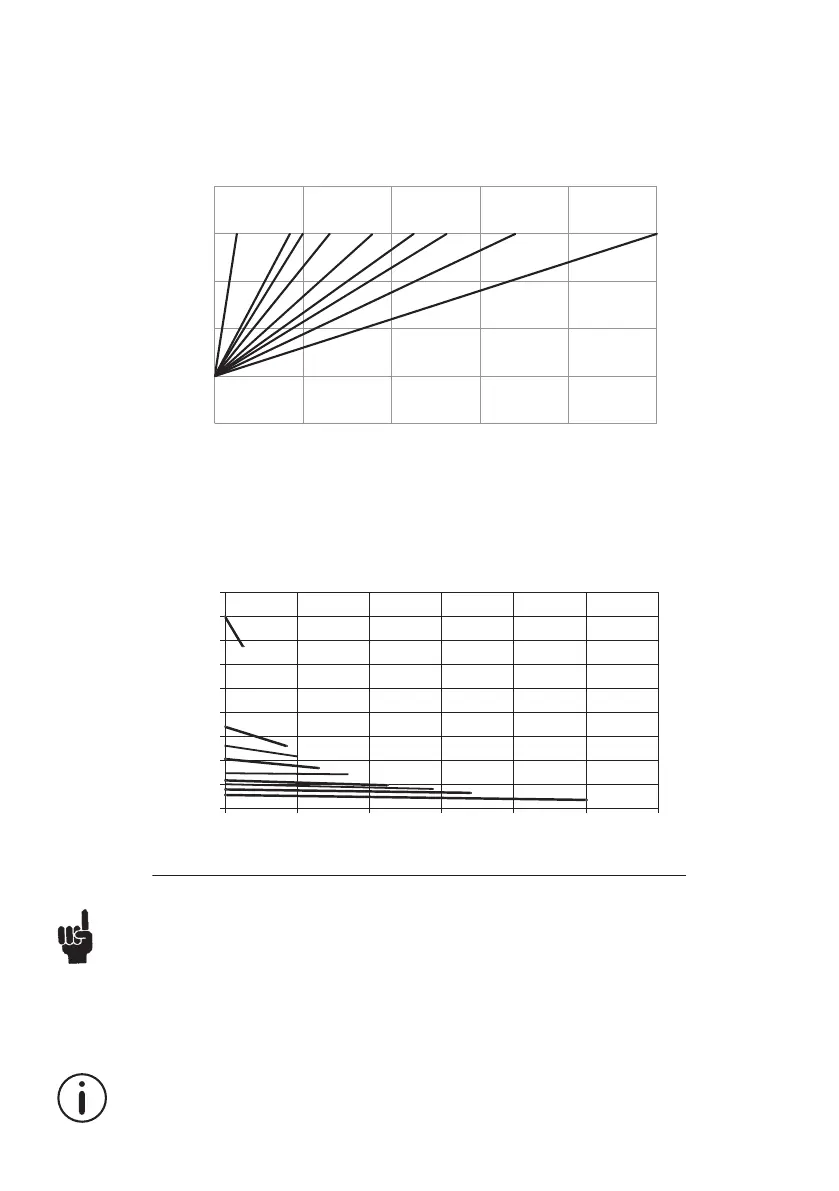

LA36 36V motor current vs. load
G gear
12mm/
F gear
12mm/
F gear
20mm/
E gear
20mm/
H gear
12mm/
H gear
8mm/
F gear
16mm/
G gear
16mm/
H gear
16mm/
0
20
40
60
80
100
120
140
160
180
0 2000 4000 6000 8000 10000 12000
Speed (mm/s)
Load (N)
LA36 36V motor speed vs. load
20mm/
E gear
20mm/
F gear
12mm/
F gear
12mm/
G gear
12mm/
H gear
8mm/
H gear
16mm/
F gear
16mm/
G gear
16mm/
H gear
When ordering LA36F
When purchasing the LA36 actuator with fast gear and slide for the end-stop function,
the customer has been informed that there is an increased risk that the activation arm for
end-stop can be damaged during use, especially if the actuator runs to limit switch without
load, both in the inner or outer position. A defective activation arm will inevitably lead to
an inoperative end-stop function.
