Page 57 of 96
© 2020 LINAK A/S
Actuator with CAN bus
CAN bus actuators are produced and delivered in the inner endstop position.
The BusLink software tool (v.2.0 or later versions) is available for CAN bus and can be
used for: Diagnostics, manual run and configuration.
BusLink LIN is only intended for service interface.
Download BusLink software here: http://www.linak.com/techline/?id3=2363
For more information and easy set-up of BusLink, please follow this link to view the Quick Guide for
BusLink: http://www.linak.com/techline/?id3=2356
Please note that the BusLink cables must be purchased separately from the actuator!
Item number for BusLink cable kit: 0367997 (adaptor + USB2Lin)
BROWN
BLUE
YELLOW
GREEN
WHITE
VIOLET
BLACK
12/24V DC
RED
INWARDS
OUTWARDS
DATA
DATA GND
M
H-Bridge
Service
interface

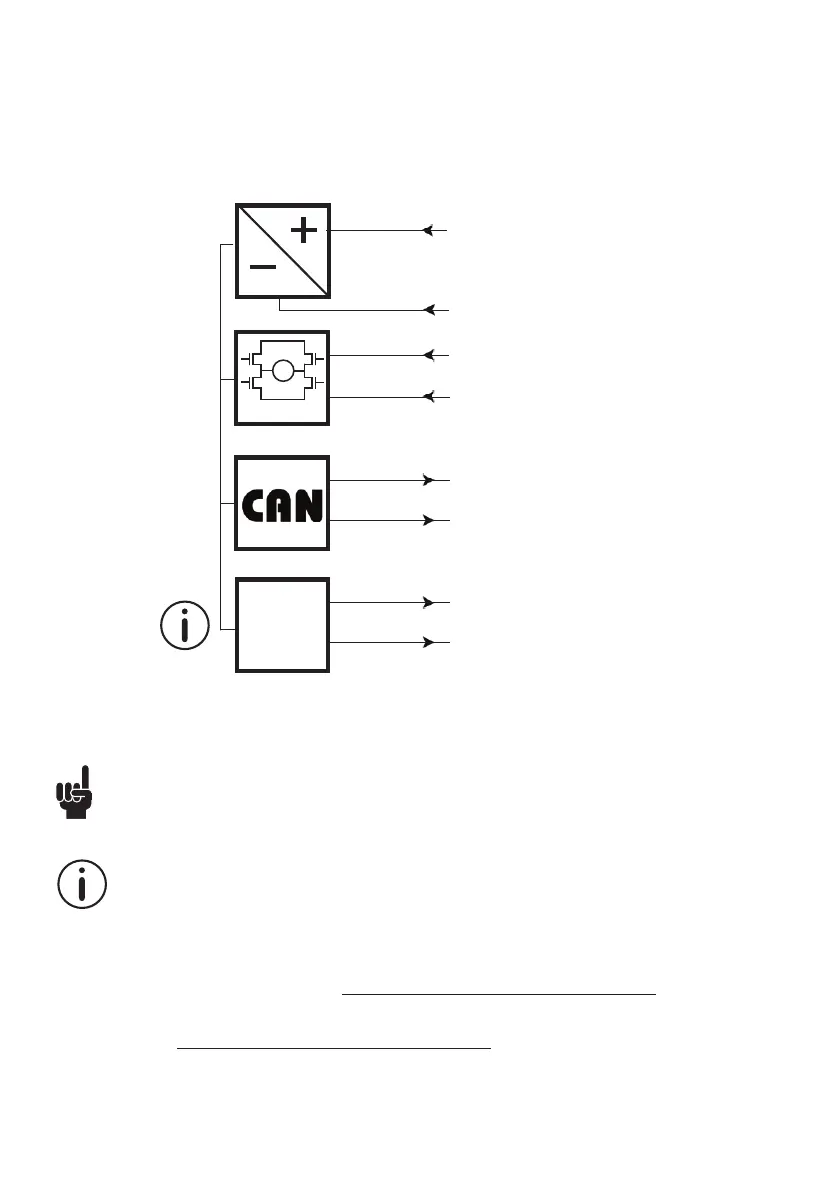

Connection diagram:
Fig. 16 : 36xxxxxCDxxxxxx
Please be aware that if the power supply is not properly connected, you might damage the actuator!
CAN _ H
CAN _ L
