Actuator with endstop signals and relative positioning - Single Hall

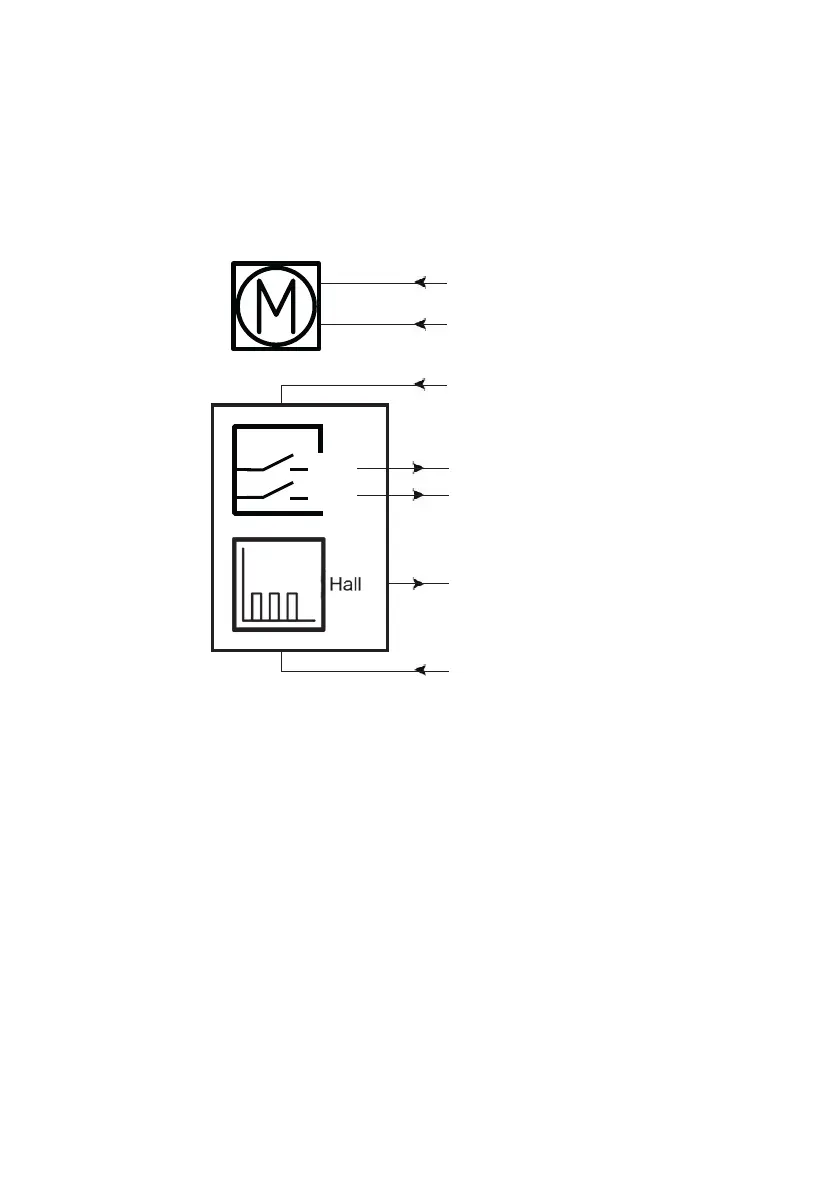

Connection diagram:
Fig. 6 : 36xxxxx2Kxxxxxx
36xxxxxxxK00xx-xxxxxxxxxxxxxxx
BROWN
BLUE
YELLOW*
GREEN*
IN
OUT
RED
VIOLET
BLACK
+
-
*YELLOW/GREEN:
Endstop signals out are NOT potential free!
If you wish to use the endstop signals, you will have to keep power on the brown, blue, red and black wires,
otherwise the signal will be lost.
