Page 52 of 96
© 2020 LINAK
A/S

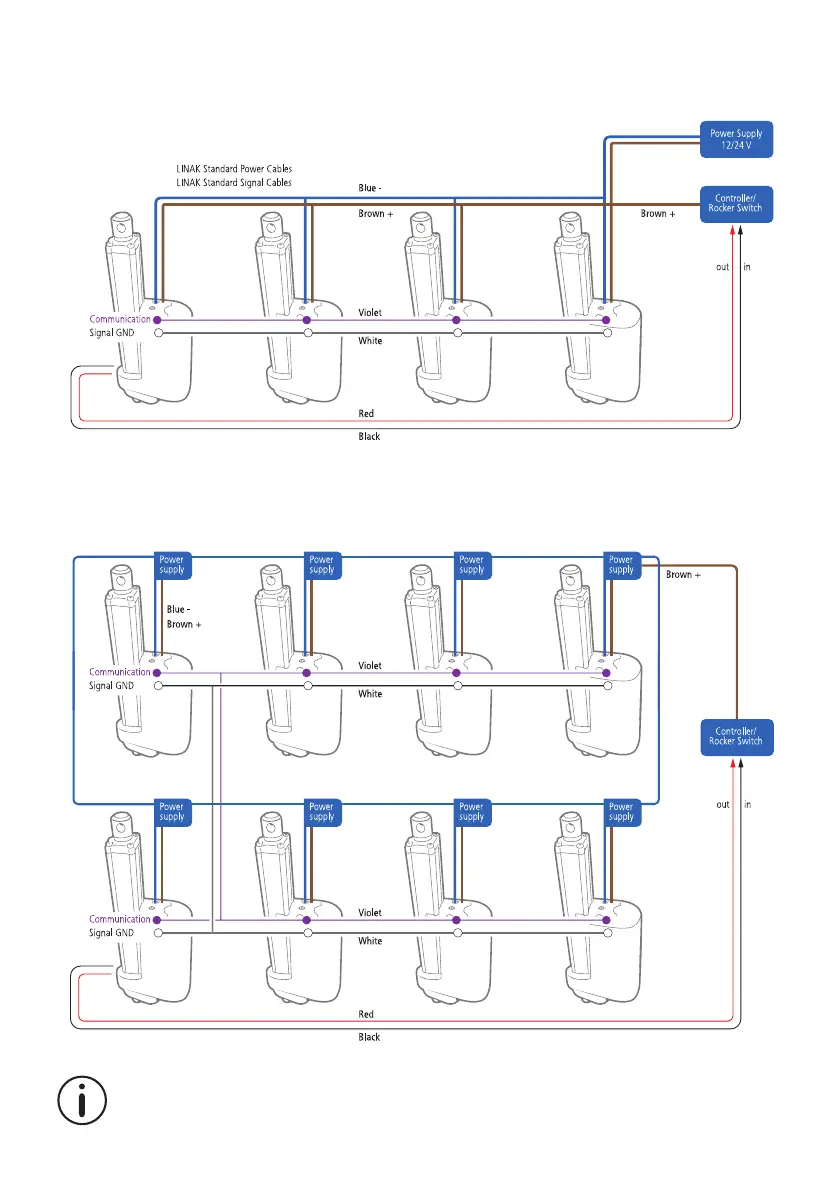

The parallel system
It is both possible to run parallel with a single power supply,
or to run each actuator with separate power supplies
.
T
he parallel drive function will support a number of actuators working jointly.
Only standard power and signal cables are available for par
allel
.
If separate power supplies are used,
they must have the same potential
, and the power supply GND
(blue wires) must be connected together
.
