Page 36 of 96
© 2020 LINAK
A/S
Actuator with endstop signals and absolute positioning - PWM

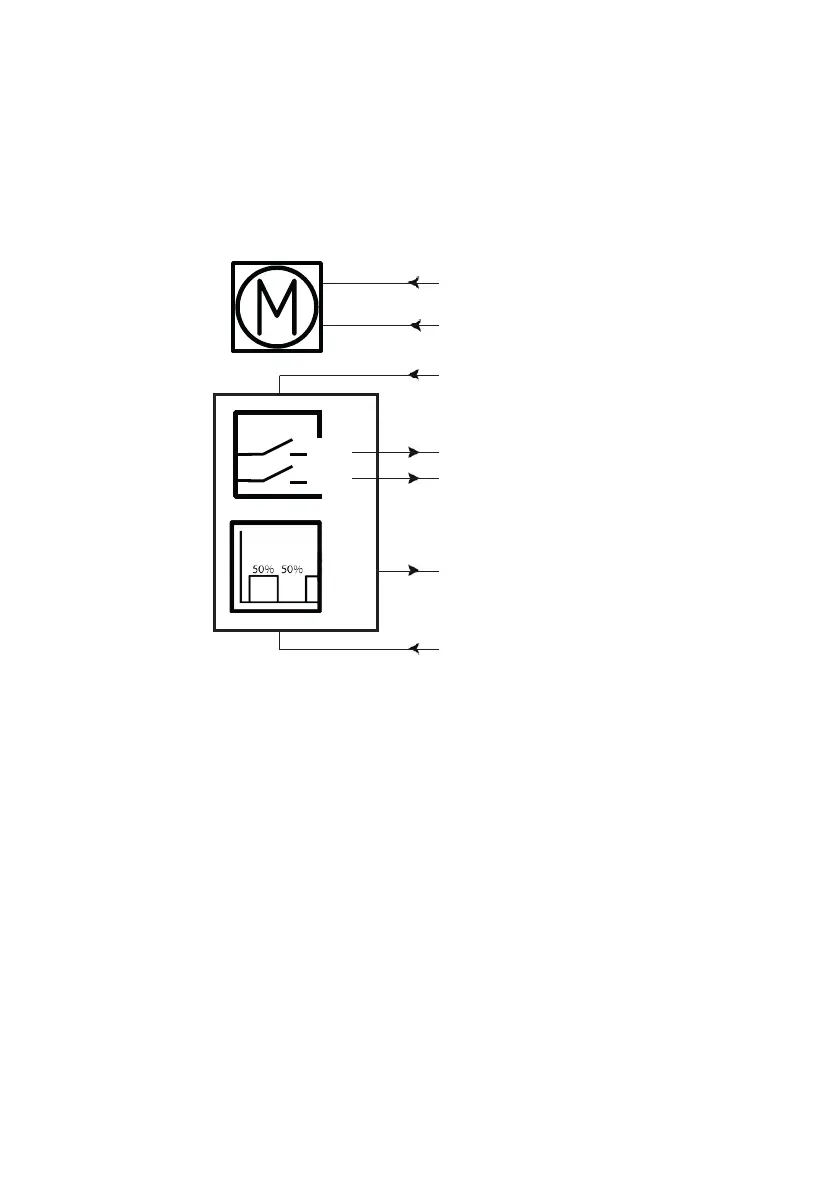

Connection diagram:
Fig.
12 :
36xxxxx25/26xxxxxx
36xxxxxxxF00xx-xxxxxxxxxxxxxxx
BROWN
BLUE
PWM
YELLOW*
GREEN*
IN
OUT
RED
VIOLET
+
BLACK
-
*YELLOW/GREEN:
Endstop signals out are NO
T potential free!
If you wish to use the endstop signals
,
you will have to k
eep power on the brown,
blue
,
red and black wires
,
otherwise the signal will be lost.
35
37
Table of Contents
Default Chapter
2
Table of Contents
2
Preface
4
LINAK Application Policy
5
Chapter 1
6
Safety Instructions
6
Iecex/Atex
8
Chapter 2
10
Mounting Guidelines
10
Mounting of Cables
12
Mounting of Cables with Cable Gland Cover
13
Electrical Installation
14
Recommended Fuse
14
Actuator Without Feedback
15
Actuator with
16
Endstop Signal Output
17
Relative Positioning - Dual Hall
18
Endstop Signals and Relative Positioning - Dual Hall
20
Relative Positioning - Single Hall
22
Endstop Signals and Relative Positioning - Single Hall
24
Absolute Positioning - Analogue Feedback
26
Endstop Signals and Absolute Positioning - Analogue Feedback
28
Absolute Positioning - Mechanical Potentiometer Feedback
30
Endstop Signals and Absolute Positioning - Mechanical Potentiometer Feedback
32
Absolute Positioning - PWM
34
Endstop Signals and Absolute Positioning - PWM
36
IC Basic
38
IC Advanced - with Buslink
41
Correct Wiring of Power GND and Signal GND for IC Basic and IC Advanced
44
IC Options Overview
45
Feedback Configurations Available for IC Basic, IC Advanced and Parallel
46
Actuator Configurations Available for IC Basic, IC Advanced and Parallel
47
Actuator with Parallel
49
The Parallel System
52
System Monitoring for Parallel
54
Alignment of the Parallel Actuator System
54
Parallel Manual Service Mode
56
Actuator with CAN Bus
57
Actuator with CAN Open
59
System Combination Possibilities for LA36 IC Advanced
62
TECHLINE Signal Cables
62
Chapter 3
63
Troubleshooting
63
Troubleshooting for Parallel
65
Buslink Service Counter - Reason for Last Stop
67
Chapter 4
68
Specifications
68
Usage
68
Actuator Dimensions
69
Built-In Dimensions
70
Manual Hand Crank
71
Speed and Current Curves
72
Motor
72
Motor
73
Motor
74
Motor
75
Label for LA36
76
Label for LA36 Iecex/Atex
77
Key to Symbols
78
LA36 Ordering Example Econ
79
LA36 Ordering Example
81
Chapter 5
82
Maintenance
82
Repair
82
Main Groups of Disposal
82
Warranty
82
Declarations of Conformity
85
Declaration of Incorporation of Partly Completed Machinery
87
Iecex Certificates
88
ATEX Certificates
92
