Actuator with endstop signal output
*YELLOW/GREEN:
Endstop signals out are NOT potential free!
If you wish to use the endstop signals, you will have to keep power on the brown, blue, red and black wires,
otherwise the signal will be lost.

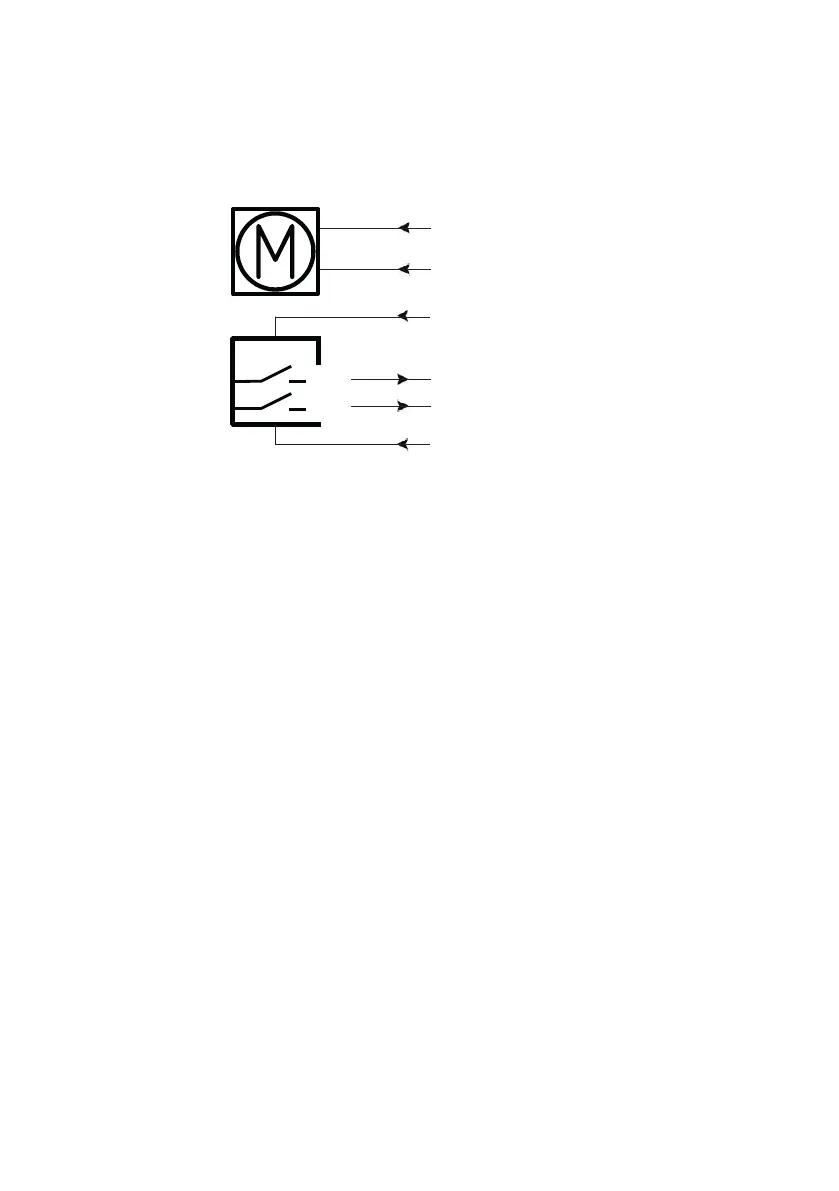

Connection diagram:
Fig. 2 : 36xxxxx20xxxxxx
36xxxxxxx000xx-xxxxxxxxxxxxxxx
YELLOW*
GREEN*
IN
OUT
BROWN
BLUE
RED
BLACK
+
-
