Linertec LTS-200 Series User Manual

[LIST] Key

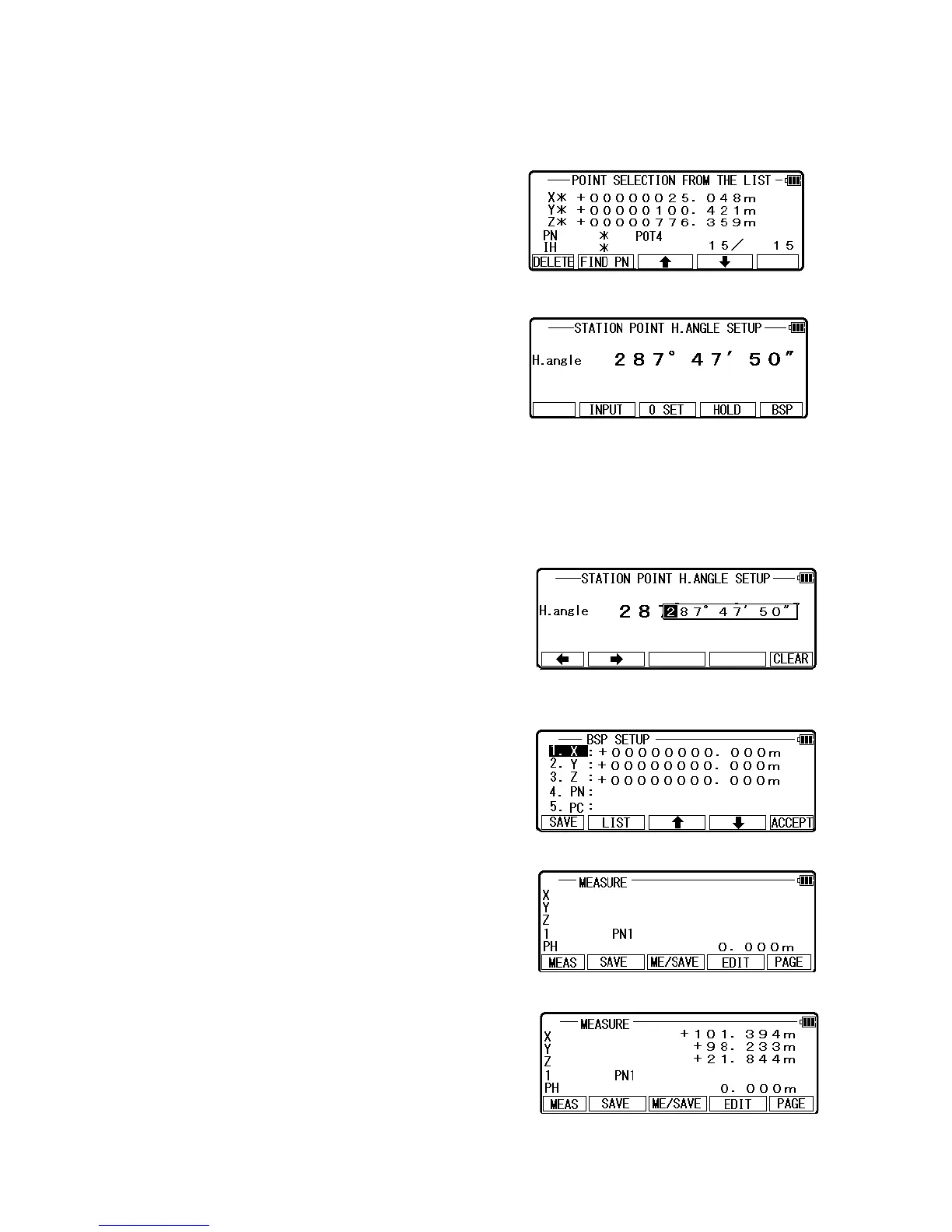

All stored points can be displayed as follows by
pressing [F2] [LIST].
Press the [F2] [LIST] to view POINT SELECTION
FROM THE LIST screen.
You can enter Coordinates data by applying the List
data.
Press [ENT] to open the input window of PN, X, Y,
Z and IH value.
Input each Character or value and press [F5]
[ACCEPT] to view the STATION POINT
H. ANGLE SETUP screen.
Input the H. angle by pressing [F2] [INPUT], [F3] [0SET] and [F4] [HOLD] or Backsight
Coordinates by pressing [F5] [BSP].
Press [ENT] to open the input window when using [F5] [BSP].
Pressing [F2] [INPUT] Input any horizontal angle.
Pressing [F5] [BSP] The information for Back Sight
Point is obtained. Press [ENT] to finalize the input.
Aim at the reference point, then press [ENT] to
enter Multiple Orientation. For more details, refer to
“11.1.4 Multiple Orientation”. Following Multiple
Orientation, it takes you to MEASURE screen.
Aim at point 1 and press [F1] [ MEAS].
Measured Coordinates are displayed.
