Linertec LTS-200 Series User Manual

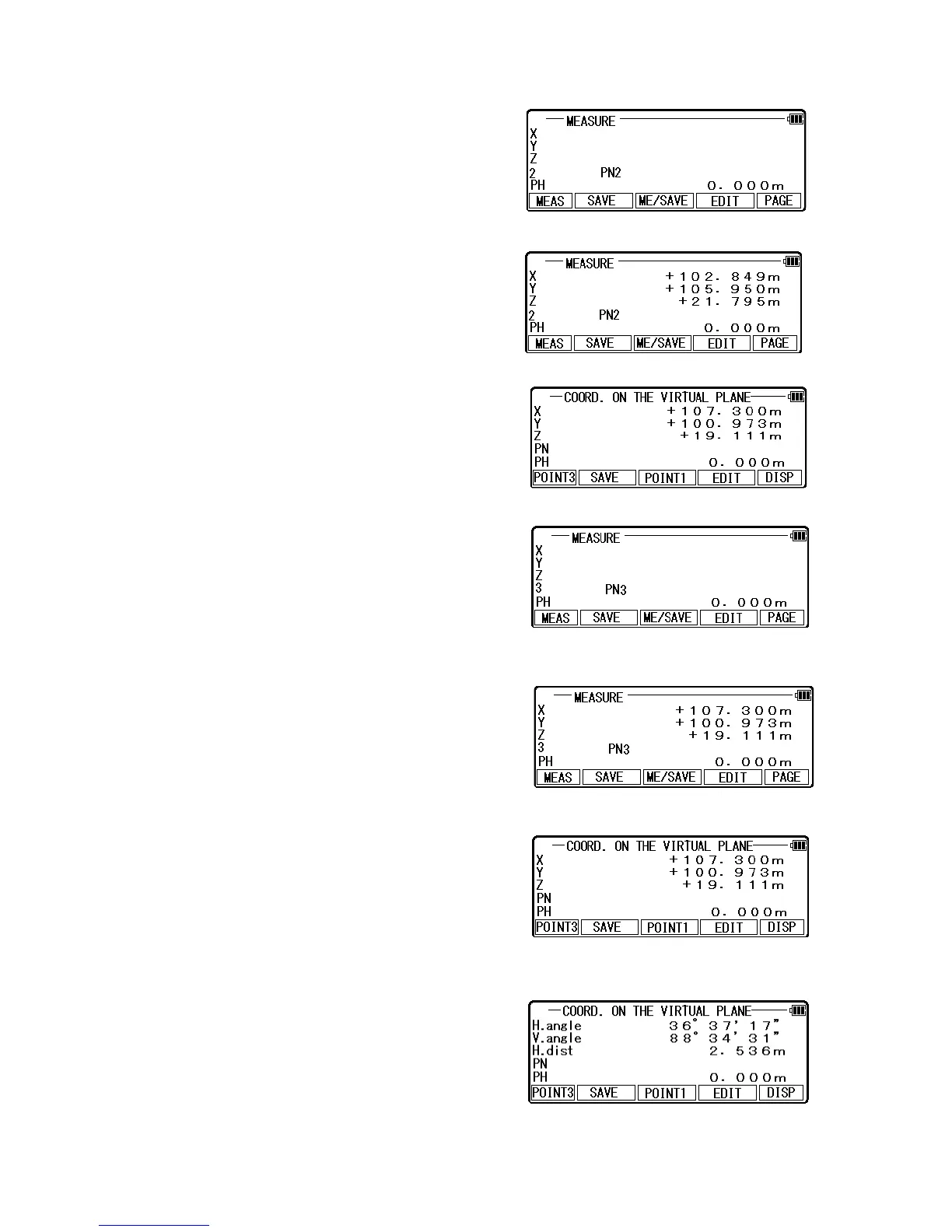

Press [ENT] to view the next MEASURE screen.
In the same manner, aim at point 2 and press [F1]
[ MEAS].
Measured Coordinates are displayed.
Press [ENT] to view the COORD.
ON THE VIRTUAL PLANE screen.
Aim at your desired point and press [ENT].
The Coordinates which you aim at are displayed.
Press [MEAS] to view the next MEASURE screen.
Aim at point 3 and press [F1] [MEAS]. Measured
Coordinates are displayed.
Press [ENT] to view the COORD. ON THE
VIRTUAL PLANE screen.
Aim at your desired point and press [ENT].
The Coordinates, which you aim at, are displayed.
Pressing [F4] [EDIT] can edit the Point Name and Prism Height.
Pressing [F5] [DISP] can switch displayed value
from Rectangular data to Polar data.
Press [F2] [SAVE] to save the measured data.
20
