Linertec LTS-200 Series User Manual

The PN, X, Y, Z and PC are viewed and can be edited. If all items are OK, press [F5]
[ACCEPT] to save them.

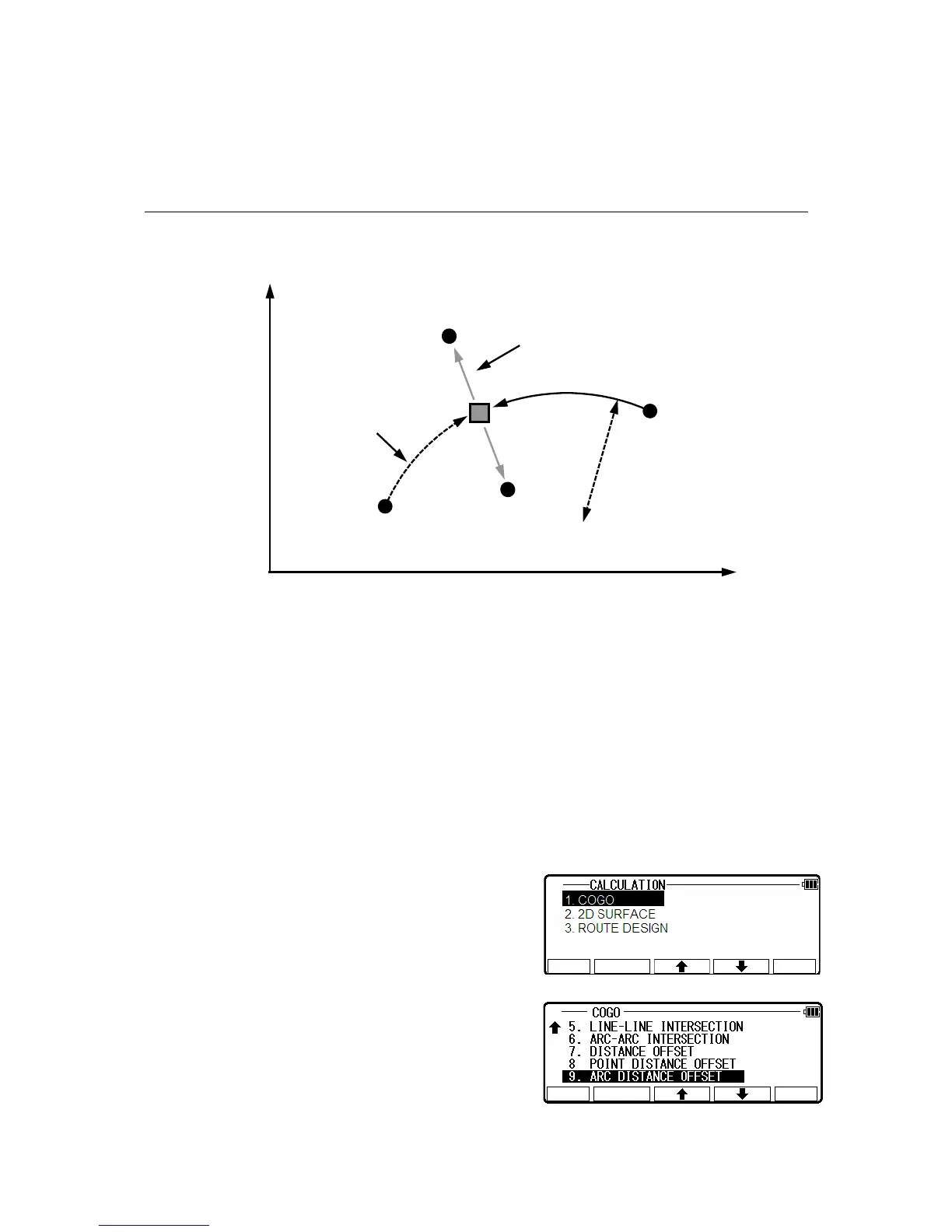

6.1.9 Arc distance offset
Offset point from the arc is calculated.
Input: arc: Start point, End Point and Radius (R)
Distance along arc from Start point (DI)
Offset from the arc (OD) (moving in the direction from Start point to End Point, right
is positive, left is negative)
NOTE: From Start point to End Point must be CLOCKWISE. If you calculate by arc of
COUNTER CLOCKWISE, change SP for EP and calculate changed DI manually.
Output: new offset point
From the LinertecExpress screen, press 4 to view the
CALCULATION screen.
Select 1.COGO and press [ENT] to view the COGO
screen.
77
(+)
SP
EP
New Offset Point
New Point
New Offset Point
(-)
OD
DI
R
