Select the 9. ARC DISTANCE OFFSET and press [ENT] to view ARC DISTANCE OFFSET
screen.

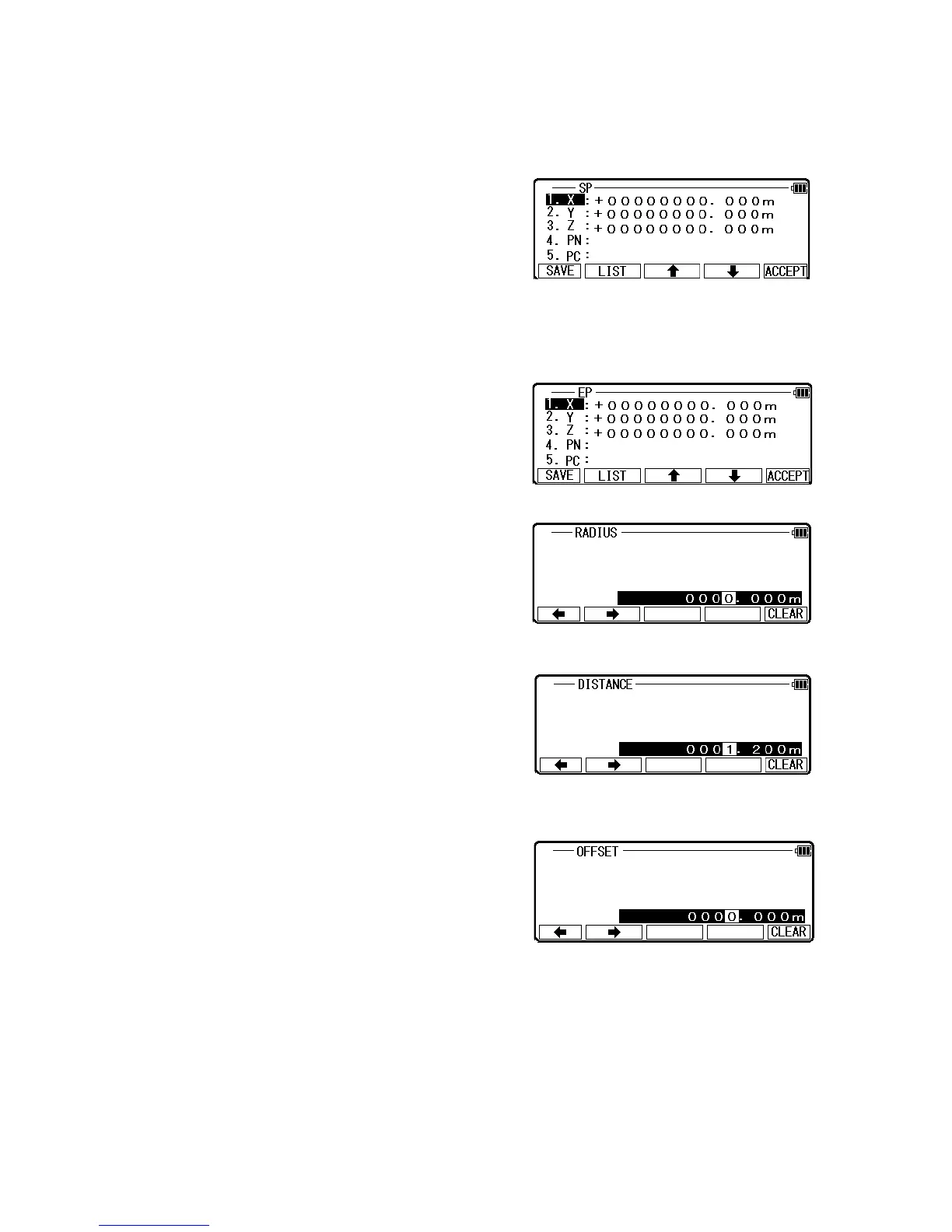

Select 1. SP and press [ENT] to view SP screen.
Input PN (Point Name), X, Y, Z, and PC (Point Code) of SP point or import from the
memory of rectangular coordinate as SP by [F2] [LIST].
If you finish the input of SP value, press [F5]
[ACCEPT]. Then you go to EP input screen.
Input EP data like an input of SP.
If you finish input of EP, press [F5] [ACCEPT].
Then you go to RADIUS input screen.
Input RADIUS (Radius of circle).
If you finish the input of RADIUS, press [ENT].
Then you go to DISTANCE input screen.
Input DISTANCE (Distance from SP to point on the
arc).
If you finish the input of DISTANCE, press [ENT].
Then you go to OFFSET input screen.
Press [ENT] to view the RESULT OF ARC DISTANCE OFFSET screen. You can see the
coordinates of the Offset Point.
78
