Pan/Tilt/Zoom (PTZ) Cameras19
2. (OPTIONAL) Connect the PTZ camera’s power adapter to a power outlet.
CAUTION
Most PTZ cameras have a higher power requirement than fixed cameras. If you are planning to connect more
than one PTZ camera to the system, check the power requirement in your PTZ camera’s documentation to en-
sure you remain within the total PoE power output of the recorder (80W). Connecting the included power
adapter to your PTZ camera as shown above will force it to draw power from the wall outlet rather than the re-
corder’s PoE switch.
19.2 Basic PTZ Controls
Controlling PTZ cameras.
NOTE
Ensure you have completed initial setup of your PTZ camera in order to control the camera using the recorder. See
19.1 Connecting PTZ Cameras to the Recorder for more details.
To access the PTZ controls:
• Open the Live View screen for your PTZ camera in single-channel view (fullscreen). Right-
click to open the Quick Menu, then click Pan/Tilt/Zoom.
• Right-click again to close PTZ controls.
To use the PTZ controls:

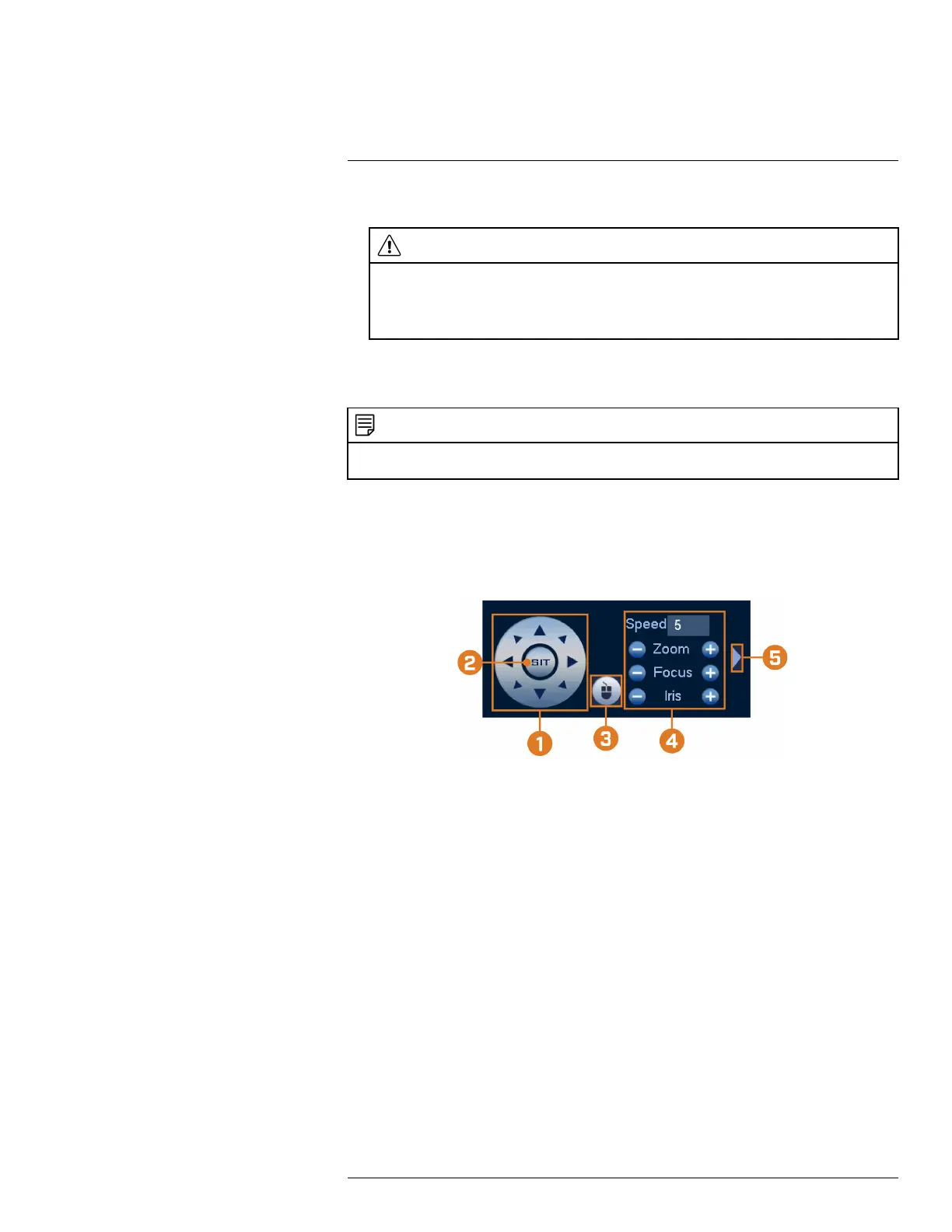

1. Navigation Controls: Click the directional arrows to move the PTZ camera manually.
2. Zoom-to-Area: Click, then click-and-drag to draw a box on the camera image. The PTZ cam-
era will zoom in to the selected area.
3. Mouse Tracking: Click to enable/disable mouse tracking. When enabled, click-and-drag in
the direction you would like the PTZ camera to move. The camera will follow the path of the
mouse cursor.
4. PTZ Settings:
• Speed: The speed of PTZ camera movement. A higher value means the camera will move
faster.
• Zoom: Optical zoom level. Click + to zoom in, and – to zoom out.
• Focus: Manually control focus level. Click + to focus on objects further from the camera,
or – to focus on objects closer to the camera.
• Iris: Controls the amount of light coming through the lens. Click + to allow more light, or
– for less.
5. Advanced: Expand to show advanced options. For a full overview, see 19.3 Advanced PTZ
Controls, page 100.
19.3 Advanced PTZ Controls
Using advanced options for PTZ cameras, including presets, tours, patterns, etc.
#LX400113; r. 1.0/56015/56022; en-US 100
