Using
the
Main
Menu
16
T
o
access
the
HDD
Info
menu:

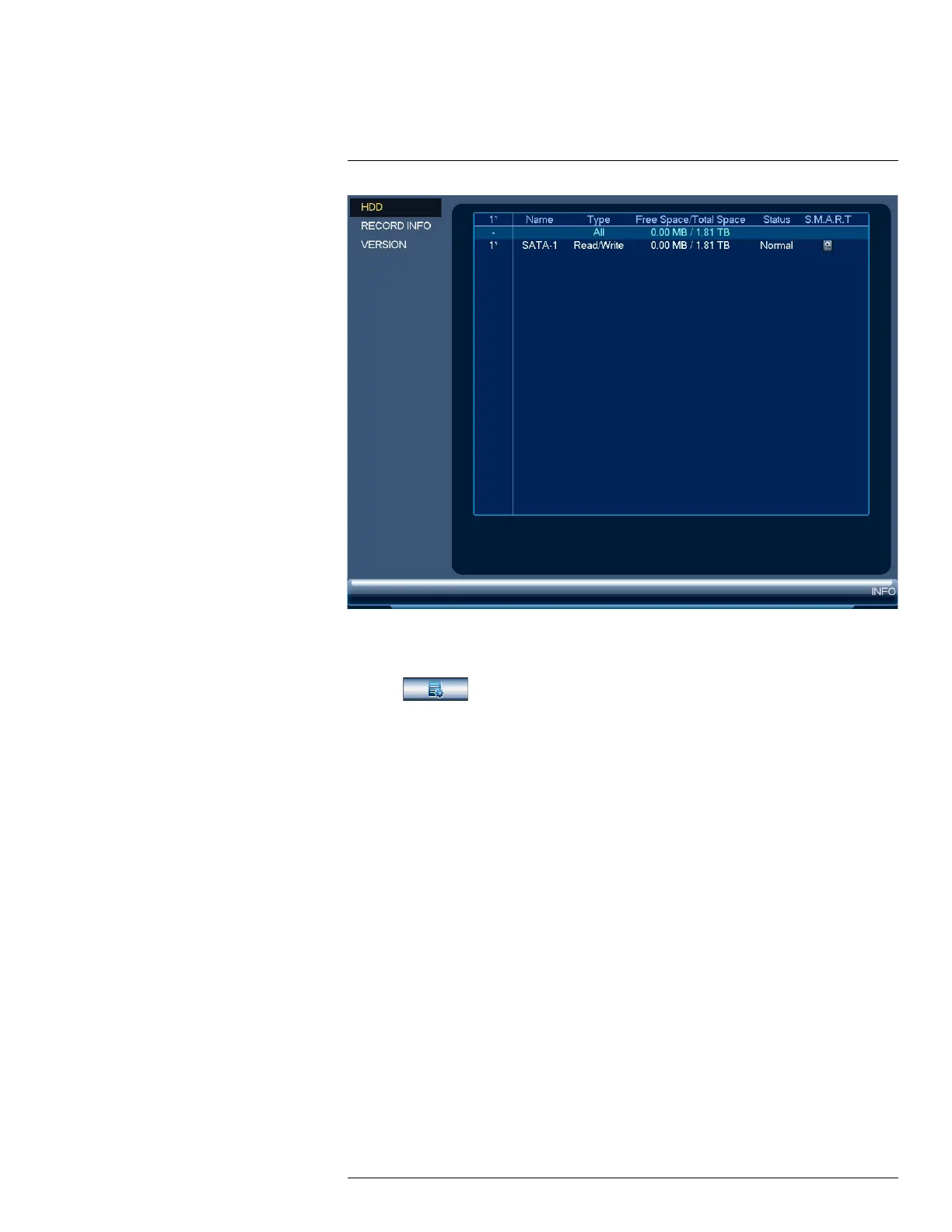

1.
From
the
Live
V
iew
display
,
right-click
to
open
the
Quick
Menu,
then
click
Main
Menu
.
2.
Click
,
then
click
INFO
.
Click
the
HDD
tab
on
the
side
panel.
16.3.2
Recording
Information
V
iew
start
and
end
times
of
recordings
saved
on
the
hard
drive.
