LulzBot TAZ User Manual

3D Printer Software
to select. Make sure the port baud rate is set to 115200 in the pull down
menu to the right of the port selection. You can refresh the USB ports, by
clicking the Port button.
Now, to connect to the printer click the Connect button. In the text
output window you will see multiple return lines. If you see Printer is
now online you have successfully connected to the printer. The printer
control buttons on the left will also darken and become click-able after
connecting. When you need to disconnect the printer simply press the
Disconnect button.
Printer Controls
All of the printer controls can be found on the left side of the Printrun
interface (Fig. 2.3, page 32). To set the hot end and print surface

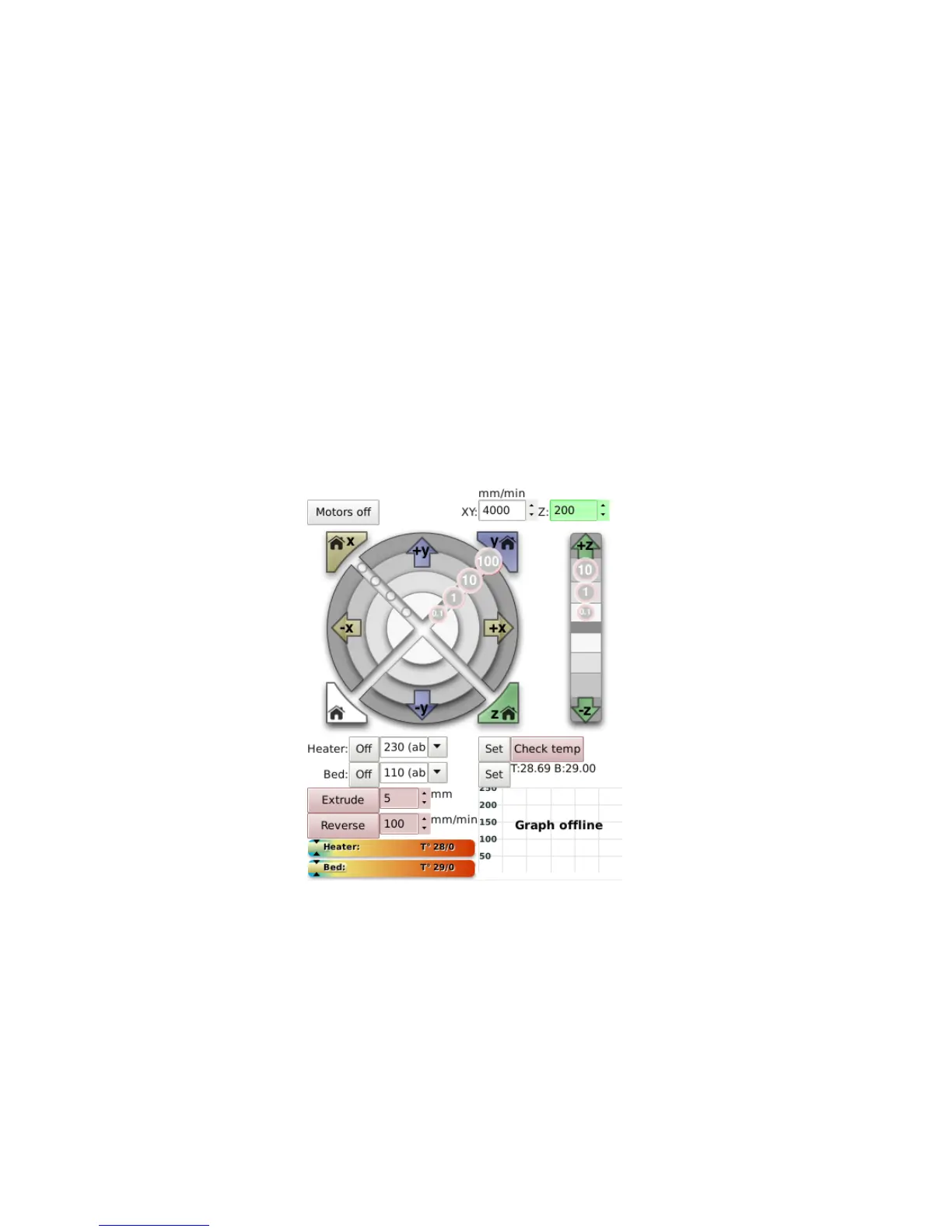

Figure 2.3: Printrun controls
temperature first click the Monitor Printer check box on. This will enable
the printer temperature bars and graph. The hot end and print surface
controls are labeled Heater and Bed . Select the temperature setting by
using the pull down menu for pre-defined temperature settings. You can
also set custom temperature settings by typing into the temperature box.
32

LulzBot TAZ Specifications

General

Nozzle Diameter	0.5 mm (standard), interchangeable
Print Speed	Up to 200 mm/s
Max Hotend Temperature	300°C
Max Heated Bed Temperature	120°C
Connectivity	USB
Supported Materials	PLA, ABS, HIPS, PVA, PETG, Nylon, TPE, TPU, PC, wood-filled
Print Surface	PEI-coated borosilicate glass bed
Bed Leveling	Automatic
Operating System Compatibility	Windows, macOS, Linux
Power Requirements	100 - 240 VAC
Print Technology	Fused Deposition Fabrication (FDM)
