Slic3r in Depth
3. Nozzle Diameter
The diameter of the hot-end nozzle is usually clearly displayed either in the
description of the hot-end, or in the associated documentation, when the
hot-end is purchased. Common values are 0.5mm and 0.35mm.
If the nozzle was home-made, or came from a source without a diameter
given, then carefully measure the aperture as accurately as possible. One
way of determining nozzle size is to very slowly (1mm/s) extrude some
filament into free air and measure the thickness of the resulting extrusion
1
.
This has the benefit of taking die swell into account, and consequently may
be a useful thing to do even if the diameter is known.

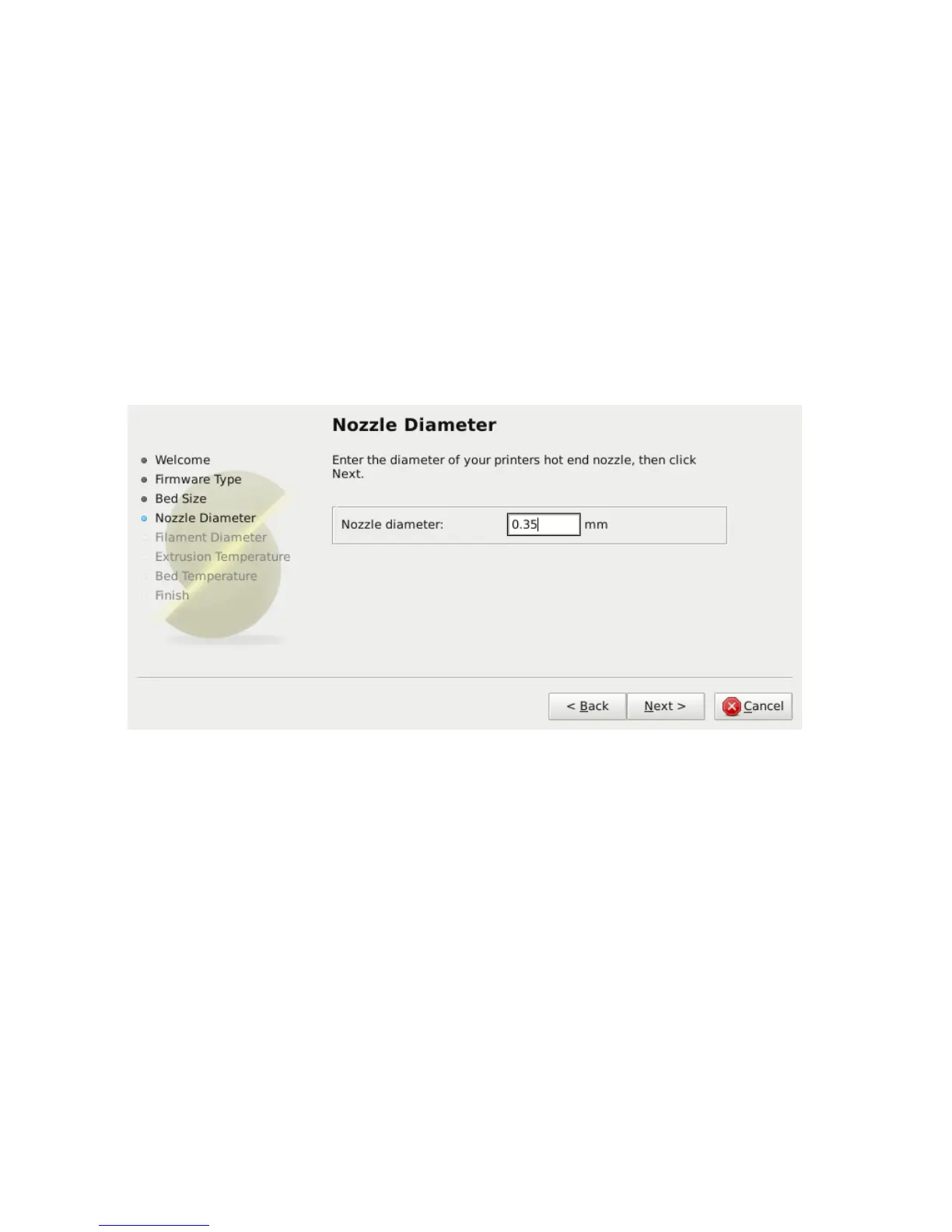

Figure 3.4: Configuration Wizard: Nozzle Diameter
1
http://forums.reprap.org/read.php?1,113374,113953
44
